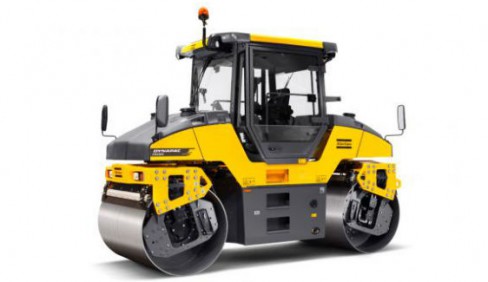

Dynapac CG2300

Double tap to zoom

Double Drum Vibratory Rollers CG2300
Overview:
Operating Mass: 17,417 lbs
SLL (front/rear): 147 / 147 lbs/in
Drum width: 59 in
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Visibility
Optimal visibility over the drums
Efficient LED-lights for night-work
Sliding seat possibilities
Sprinkler system
Pressurized sprinkler system
Large water-tank
3 filtration system
Sprinkler timer
Performance
High vibration frequency
Dual frequency
High efficient eccentrics
Offset
Powerful Kubota engine
Transportation
Foldable ROPS
Flexible lifting/towing/tie down
possibilities in the forks
Central lifting point
Optimized machine length for
efficient transportation
Good ergonomics
Low noise
Easy to understand instrument panel
Comfortable vibration damped
operator platform
Driver lever following the sliding seat
Serviceability
Easy accessible daily servicepoints
Reliable sprinkler system
Cross-mounted engine for
best access
Dyn@Link (optional)
Specifications
Masses | |
Max. operating mass | 23,400 lbs |
Operating mass (incl. Cab) | 17,417 lbs |
Module mass (front/rear) | 8,700 lbs/ 8,700 lbs |
Traction | |
Speed range | 0-12 |
Vertical oscillation | ±6° |
Theor. gradeability | 41 % |
Compaction | |
Split drums | Yes |
Centrifugal force (high/low amplitude) | 17,990 lb/ 13,490 lb |
Nominal amplitude (high/low) | 0.024 in/ 0.012 in |
Static linear load (front/rear) | 147 / 147 lbs/in |
Vibration frequency (high/low amplitude) | 2,700 vpm/ 3,300 vpm |
Water tank | 203 gal |
Engine | |
Manufacturer/Model | Deutz TD3.6 L4 IV/T4F |
Type | Water cooled turbo Diesel |
Rated power, SAE J1995 | 74 hp @ 2,200 rpm |
Fuel tank capacity | 30 gal |
Alternative Engine | |
Manufacturer/Model | |
Hydraulic system | |
Driving | Axial piston pump with variable displacement Axial piston motors (4) with variable displacement Flow divider |
Vibration | Axial piston pumps (2) with variable displacement Axial piston motors (2) with constant dispacement |
Steering | Load sensing system. Gear pump with constant displacement. |
Service brake | Hydrostatic in forward and reverse lever. |
Parking/Emergency brake | Failsafe multidisc brake in both drums. |
