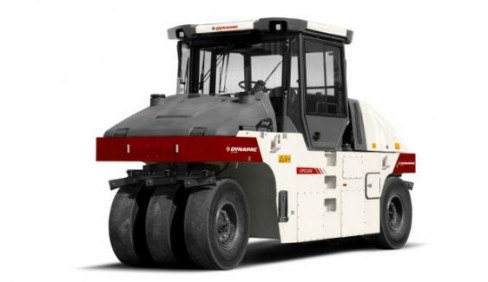

Dynapac CP2100W
Double tap to zoom
Pneumatic Rollers CP2100W
Overview:
Operating Mass: 20,900 lbs
Static linear load: N/A
Drum width: N/A
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Dynapac has a complete range of pneumatic tyred rollers. All have standard features offering high performance, simplicity and versatility. The CP142 has an exclusive Modular Ballast System comprising sealed ballast containers to allow exact visual control of wheel loads. The roller is used to compact asphalt for sealing purposes. It is also used to compact base, sub-base and stabilized soil. CP2100 and CP2700 are used mainly in conjunction with other asphalt rollers for surface sealing. Due to their heavy weight, they are also used for soil compaction.
Specifications
| Masses | |
| Operating mass (incl. ROPS) | 20,900 lbs |
| Mass with max. ballast | 46,300 lbs |
| Mass with wet sand ballast | 31,200 lbs |
| Traction | |
| Speed low | 5.6 mph |
| Speed high | 14.0 mph |
| Compaction | |
| Rolling width | 89 in |
| Tire overlap | 1.7 in |
| Wheel loads, without ballast | 3,000 lbs |
| Wheel loads, with wet sand ballast | 4,450 lbs |
| Wheel loads, with max. ballast | 6,600 lbs |
| Tire pressure, min | 36 psi |
| Tire pressure, max | 123 psi |
| Tire type (smooth) | 14/70 R20 |
| Water spray system, type | Pressurized |
| Water spray system, tank capacity | 110 gal |
| Water spray system, spray nozzle | one per tire |
| Ballast volume | 78 cu. ft. |
| Engine | |
| Manufacturer/Model | Cummins QSB 3.8 (Tier 4F) |
| Rated power, SAE J1995 | 118 hp @ 2,200 rpm |
| Type | Water cooled turbo diesel |
| Fuel tank capacity | 55 gal |
| Electrical system | 24V |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSB 3.8 (Tier 4F) |
| Rated power, SAE J1995 | 97 kW @ 2,200 rpm |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSB 3.3 (Tier 3A) |
| Rated power, SAE J1995 | 74 kW (99 hp ) @ 2,200 rpm |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement. |
| Steering | Axial piston pump with variable displacement. |
| Service brake | 2 multidisc brakes on rear wheels activated by pedal. |
| Parking/Emergency brake | Failsafe multidisc brakes in both gear boxes. |
