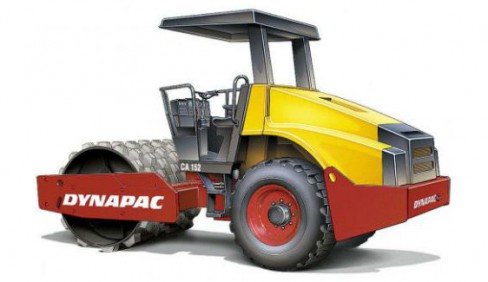

Single Drum Vibratory Rollers CA152PD
Features
Specifications
| Masses | |
| Operating mass (incl. ROPS) | 17,000 lbs |
| Module mass (front/rear) | 8,900 lbs/ 8,000 lbs |
| Max. operating mass | 19,400 lbs |
| Traction | |
| Speed range | 0-6.5 |
| Tire size (8 ply) | 420-70 B24 |
| Theor. gradeability | 55 % |
| Vertical oscillation | ±9° |
| Number of pads | 132 |
| Pad area | 13.0 in2 |
| Compaction | |
| Nominal amplitude (high/low) | 0.067 in/ 0.035 in |
| Vibration frequency (high/low amplitude) | 1,860 vpm/ 2,580 vpm |
| Centrifugal force (high/low amplitude) | 32,150 lb/ 30,580 lb |
| Engine | |
| Manufacturer/Model | Deutz QSB 3.3 T3 |
| Type | Water cooled turbo diesel |
| Rated power, SAE J1995 | 99 hp @ 2,200 rpm |
| Fuel tank capacity | 59 gal |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement Axial piston motor with constant displacement. Radial piston motor with constant displacement (D, PD). |
| Vibration | Axial piston pump with variable displacement. Axial piston motor (2) with variable displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake in rear axle. |
