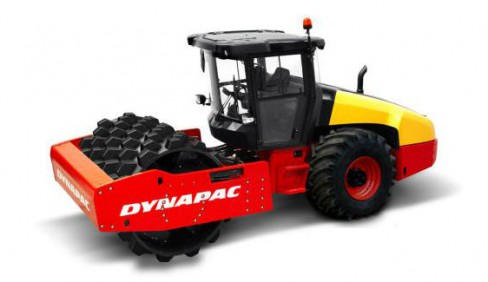

Dynapac CA3600PD
Double tap to zoom
Single Drum Vibratory Rollers CA3600PD
Overview:
Operating Mass: 27,100 lbs
Static linear load: N/A
Drum width: 84 in
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
PERFORMANCE/DURABILITY
Thick drum shell ensures compaction performance and long running time before change.
PERFORMANCE
Easy accessable scrapers divided to follow drum movement and replacement at low cost.
COMPACTION PERFORMANCE
Several compaction data to choose among.
STATIC LINEAR LOAD
in steps of 5 kg/cm means there‘s a machine for all needs.
LIGHTS
Night or day? Choose working/driving lights according to your needs.
OPERATOR´S STATION
Three main configurations to choose from, and numerous options.
PERFORMANCE
Clean inlet air (combination and cooling) taken in as high as possible.
SERVICEABILITY
Cross-mounted engine gives unique service access
SAFETY
Sloping engine hood and 1x1 meter view front & rear.
SAFETY/PERFORMANCE
Heavy duty rear axle with failsafe brakes.
ENGINES FROM CUMMINS OR DEUTZ
4 or 6 cylinders, Stage IIIA (Tier3)and up, your choice.
Specifications
| Masses | |
| Operating mass (incl. ROPS) | 27,100 lbs |
| Operating mass (incl. Cab) | 27,600 lbs |
| Module mass (front/rear) | 16,800 lbs/ 10,800 lbs |
| Max. operating mass | 28,900 lbs |
| Traction | |
| Speed range | 3-7 (mph) |
| Vertical oscillation | ±9° |
| Tire size (8 ply) | 23,1 x 26 TR |
| Theor. gradeability | 57 % |
| Compaction | |
| Nominal amplitude (high/low) | 0.071 in/ 0.039 in |
| Vibration frequency (high/low amplitude) | 1,800 vpm/ 1,800 vpm |
| Centrifugal force (high/low amplitude) | 58,450 lb/ 33,720 lb |
| Engine | |
| Manufacturer/Model | Deutz TCD6,1L06 (T4i) |
| Type | Water cooled turbo diesel |
| Rated power, ISO 14396 | 129 kW (173 hp ) @ 2,200 rpm |
| Fuel tank capacity | 72 gal |
| Hydraulic system | |
| Driving | Hydrostatic |
| Vibration | Hydrostatic |
| Steering | Hydrostatic |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/Emergency brake | Failsafe multidisc brake in drum gear box and in rear axle. |
