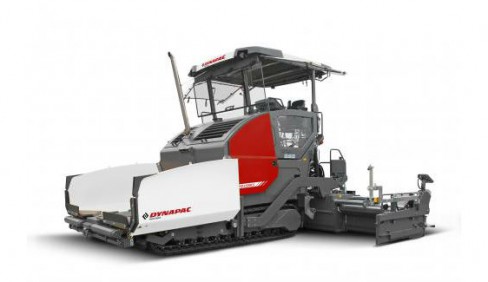

Dynapac SD2550CS

Double tap to zoom

Large Pavers SD2550CS
Overview:
Basic paving width: 8.37 ft
Max. paving width: 39.37 ft
Max. layer thickn.: 14.17 in
Theor placement cap.: 1,100 t/h
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
ERGONOMIC DESIGN
Excellent view to the hopper and all working areas due to the higher seat position and moveable platform. An optional weatherhouse with opening
windows is avaliable.
VARIO SPEED
Load sensing hydraulic system to reduce fuel consumption.
LOW NOISE
Reduced noise level through an efficient drive concept, additional noise insulation and a noise optimized screed design.
MATERIAL TRANSFER
Unmatched capacity for reduced segregation & improved paving quality.
SAFE IMPACT SYSTEM
Hydraulic push rollers for reduced impact from trucks.
ALPHA TRACKS
More ground contact for better traction & improved life.
INTEGRATED WORKING LIGHTS
Dynapac offers all lighting systems for night work: LED, lighting balloons; auger & engine compartment lights as well as side and screed lights for
wider working widths.
PAVEMANAGER 2.0
Intelligent control of the paver and the paving process for better quality.
STRONG AUGER
Slim auger drive with hydraulically adjustible height up to 25cm. Dynapac offers auger diameters from 380-500 mm.
SAFE TRANSPORT
Hydraulically operated locking cylinders for the leveling arms. Safe and easy!
DYNAPAC SCREED
Best in business with integrated leveling functions for excellent quality. The Flexilever offers fast and convenient change of the screed angle for different layer thicknesses.
Specifications
Masses | |
Tractor weight | oz |
Tractor weight (incl. standard screed) | 20 t |
Traction | |
Maximum paving speed | 330,710 fpm |
Transport speed | 218.72 fpm |
Engine | |
Manufacturer/Model | |
Emissions according to | Stage IIIA/IV (Tier 3/4f) |
Rated power, SAE J1995 | 194 kW (264 hp ) @ 2200 rpm with infinitely variable ECO-mode |
Electrical system | 24 V |
Fuel tank capacity | 85 gal |
Rated power | |
Rated power | hp |
Rated power, SAE J1995 | |
Conveyor | |
Conveyor type | Dual bar feeder |
Conveyor control | Automatic with limit switches |
Conveyor width | 2x 2.15 ft |
