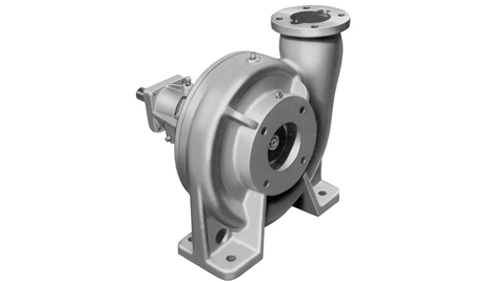

60 Series 62E31-B
Features
Size: 3" x 2" (76 mm x 52 mm) Flanged.
Casing: Ductile Iron 65-45-12.
Maximum Operating Pressure 60 psi (414 kPa).*
Enclosed Type, Four Vane Impeller: Aluminum Alloy 356-T6.
Handles 1/4" (6,4 mm) Diameter Spherical Solids.
Impeller Shaft: Carbon Steel 1045.
Bearing Housing: Ductile Iron 65-45-12.
Bearing Housing Lubrication: Grease.
Radial and Thrust Bearings: Sealed Single Row Ball.
Body Cover : Ductile Iron 65-45-12.
Gaskets: Vegetable Fiber and Cork.
Hardware: Standard Plated Steel.
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
Specifications
| Suction | 3" (76 mm) |
| Discharge | 2" (51 mm) |
| Solids Handling | 0.25" (6 mm) |
| Solids Handling | Ductile Iron |
| Impeller Material | Aluminum |
| Seal Material | Carbon/Ni-Resist |
| Flange | ASA |
| Drive Type | Basic |
