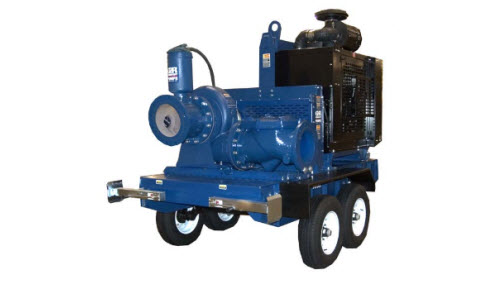

Size: 12” x 12” (305 mm x 305 mm) Flanged.Casing: Gray Iron 30. Maximum Operating Pressure 71 psi (490 kPa).* Enclosed Type, Three Vane Impeller: Ductile Iron 60‐40‐18.Handles 3” (76,2 mm) Diameter Spherical Solids.Impeller Shaft: Stainless Steel 17‐4 PH.Replaceable Wear Rings: Impeller ‐ Ductile Iron 80‐60‐03.Suction Head ‐ Copper Alloy C93200.Seal Plate: Gray Iron 30.Bearing Housing: Gray Iron 30.Seal: Mechanical, Oil‐Lubricated, Double Floating, Self‐Aligning. Silicon Carbide Rotating and Stationary Faces. Stainless Steel 316 Stationary Seat. Buna‐N and Fluorocarbon Elastomers (DuPont Viton or Equivalent). Stainless Steel 18‐8 Cage and Spring. Maximum Temperature of Liquid Pumped 160F (71C).*Shaft Sleeve: Stainless Steel 304.Priming Chamber: Gray Iron 30 Housing w/Stainless Steel Float and Linkage.Discharge Check Valve: Ductile Iron Housing w/Buna‐N Flapper.Radial Bearing: Single Row Roller.Thrust Bearings: Two Open Single Row Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.Flanges: Gray Iron 30.Gaskets: Vegetable Fiber, Buna‐N, Resistant Synthetic Rubber and Cork.O‐Rings: Buna‐N and Neoprene.Hardware: Standard Plated Steel.Bearing and Seal Cavity Oil Level Sight Gauges.*Consult Factory for Applications Exceeding Maximum Pressure and/orTemperature Indicated.
