Share This Product:

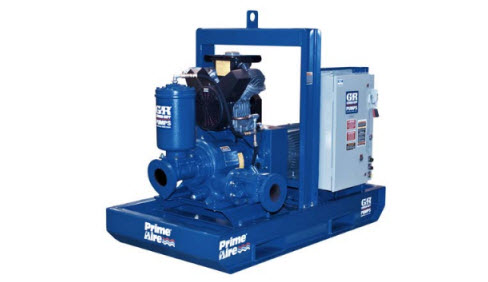

Size: 4” x 4” (102 mm x 102 mm) Flanged.Casing: Gray Iron 30.Maximum Operating Pressure 66 psi (455 kPa).*Semi‐Open Type, Two Vane Impeller: Ductile Iron 65‐45‐12.Handles 3” (76,2 mm) Diameter Spherical Solids.Impeller Shaft: Stainless Steel 17‐4 PH.Replaceable Wear Plate: Carbon Steel 1015.Bearing Housing: Gray Iron 30.Seal Plate: Gray Iron 30.Seal: Cartridge Type, Mechanical, Oil‐Lubricated, Double Floating, Self‐Aligning. Silicon Carbide Rotating and Stationary Faces. StainlessSteel 316 Stationary Seat. Fluorocarbon Elastomers (DuPont Viton orEquivalent). Stainless Steel 18‐8 Cage and Spring. MaximumTemperature of Liquid Pumped 160F (71C).*Shaft Sleeve:Alloy Steel 4130.Priming Chamber: Gray Iron 30 Housing w/Stainless Steel Float andLinkage.Discharge Check Valve: Ductile Iron Housing w/Buna‐N Flapper.Radial Bearing: Open Single Ball.Thrust Bearing: Open Double Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.Suction Spool Flange: Gray Iron 30.Gaskets: Vegetable Fiber and Buna‐N.O‐Rings: Buna‐N.Hardware: Standard Plated Steel.Bearing and Seal Cavity Oil Level Sight Gauges.*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
