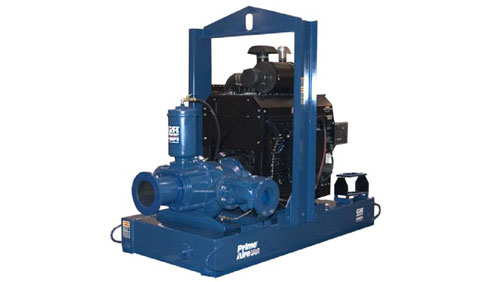

Gorman-Rupp PA6C60-4045H » General Equipment & Supplies, Inc.

Double tap to zoom



Size: 8" x 6" (203 mm x 152 mm) Flanged.
Casing: Ductile Iron 65-45-12.
Maximum Operating Pressure 127 psi (876 kPa).*
Semi-Open, Two Vane Impeller: Ductile Iron 65-45-12.
Handles 3" (76,2 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17-4 PH.
Replaceable Wear Plate: Ductile Iron 80-60-03.
Removable Cleanout Cover Plate: Gray Iron 30.
Intermediate Bracket: Gray Iron 30.
Seal Plate: Gray Iron 30.
Seal: Mechanical, Oil-Lubricated. Silicon Carbide Rotating and Stationary
Faces. Stainless Steel 316 Stationary Seat. Fluorocarbon Elastomers
(DuPont Viton or Equivalent). Stainless Steel 18-8 Cage and Spring.
Maximum Temperature of Liquid Pumped 160F (71C).*
Shaft Sleeve: Stainless Steel 17-4 PH.
Priming Chamber: Gray Iron 30 Housing w/Stainless Steel Float and Linkage.
Discharge Check Valve: Gray Iron 30 Housing w/Buna-N Flapper.
Radial and Thrust Bearings: Open Double Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non-Detergent Oil.
Flanges: Gray Iron 30.
O-Rings: Buna-N.
Gaskets: Resistant Synthetic Rubber, Cork, PTFE, Vegetable Fiber, and
Compressed Synthetic Fibers.
Hardware: Standard Plated Steel.
Bearing and Seal Cavity Oil Level Sight Gauges.
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.


Suction 8" (203 mm)
Discharge 6" (152 mm)
Solids Handling 3" (76 mm)
Solids Handling Ductile Iron
Impeller Material Ductile Iron
Seal Material Silicon Carbide
Flange ASA
Drive Type Diesel Engine
