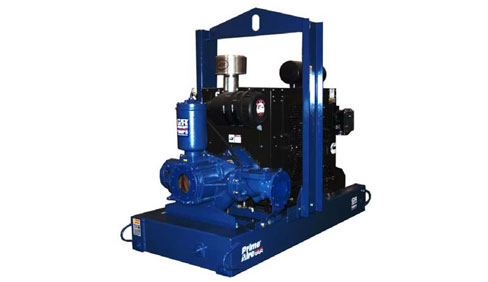

PA Series® (Prime Aire) PA6C60-QSB4.5P
Features
Size: 6 x 6” (152 mm x 152 mm) Flanged.
Casing: Ductile Iron 65‐45‐12.
Maximum Operating Pressure 99 psi (683 kPa).*
Open Type, Two Vane Impeller: Ductile Iron 65‐45‐12.
Handles 3” (76,2 mm) Diameter Spherical Solids.
Suction Cover: Gray Iron 30.
Impeller Shaft: Stainless Steel 17‐4 PH.
Replaceable Wear Plate: Ductile Iron 80‐60‐03.
Removable Cleanout Cover Plate: Gray Iron 30.
Intermediate Bracket: Gray Iron 30.
Seal Plate: Gray Iron 30.
Seal: Mechanical, Oil‐Lubricated. Silicon Carbide Rotating and Stationary Faces. Stainless Steel 316 Stationary Seat. Fluorocarbon Elastomers (DuPont Viton or Equivalent). Stainless Steel 18‐8 Cage and Spring. Maximum Temperature of Liquid Pumped, 160F (71C).*
Shaft Sleeve: Stainless Steel 17‐4 PH.
Priming Chamber: Gray Iron 30 Housing w/Stainless Steel Float and Linkage.
Discharge Check Valve: Ductile Iron Housing w/Buna‐N Flapper.
Radial/Thrust Bearings: Open Double Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Gaskets: Resistant Synthetic Rubber, Cork, PTFE, Vegetable Fiber, and Compressed Synthetic Fibers.
O‐Rings: Buna‐N.
Hardware: Standard Plated Steel.
Bearing and Seal Cavity Oil Level Sight Gauges.
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
Specifications
| Suction | 6" (152 mm) |
| Discharge | 6" (152 mm) |
| Solids Handling | 3" (76 mm) |
| Solids Handling | Ductile Iron |
| Impeller Material | Ductile Iron |
| Seal Material | Silicon Carbide |
| Flange | ASA |
| Drive Type | Diesel Engine |
