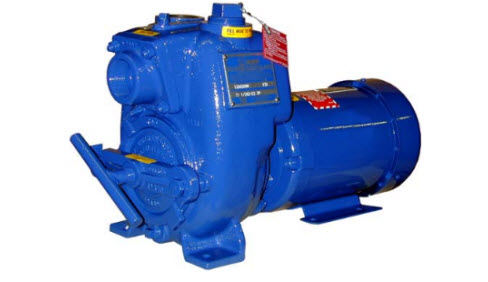

10 Series® 11 1/2A2-E2 1P
Features
PUMP SPECIFICATIONS
Size: 1-1/2" x 1-1/2" (38 mm x 38 mm) NPT - Female.
Casing: Gray Iron 30.
Maximum Operating Pressure 48 psi (331 kPa).* Semi-Open Type, Two Vane Impeller: Gray Iron 30.
Handles 1" (25,4 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 416 (Provided with Motor).
Seal Liner: (11 1/2A2-E2) Copper Alloy C26000.
Shaft Sleeve: (11 1/2A3-E2 and 11 1/2A52-E2)
Stainless Steel 304.
Replaceable Wear Plate: Steel 1026.
Removable Cover Plate: Gray Iron 30; 5 lbs. (3 kg).
Intermediate: Gray Iron 30.
Flap Valve: Steel, Gray Iron 30 and Buna-N w/Nylon
Reinforcement.
Suction Flange: Gray Iron 30.
Gaskets: Cork w/Nitrile Binder and Vegetable Fiber.
Hardware: Standard Plated Steel.
Strainer.
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
Specifications
| Suction | 1.5" (38 mm) |
| Discharge | 1.5" (38 mm) |
| Solids Handling | 1" (25 mm) |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
| Seal Material | Double Grease |
| Flange | ASA |
| Drive Type | Electric Motor |
