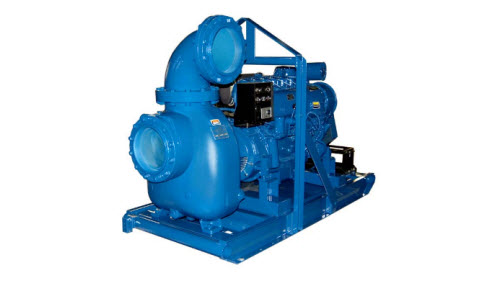

Size: 10” x 10” (254 mm x 254 mm) NPT ‐ Female.Casing: Gray Iron 30.Maximum Operating Pressure 99 psi (683 kPa).*Semi‐Open Type, Two Vane Impeller: Ductile Iron 65‐45‐12.Handles 2 1/2” (63,5 mm) Diameter Spherical Solids.Impeller Shaft: Alloy Steel 4150.Replaceable Wear Plate: Gray Iron 30.Intermediate Bracket: Gray Iron 30.Seal Plate: Gray Iron 30.Seal: Double, Grease‐Lubricated w/Spring‐Loaded GreaseCup. Sintered Bronze Stationary Seal Seats. Steel RotatingFaces. Neoprene Packing Rings. Maximum Temperature ofLiquid Pumped 110F (43C). Maximum Suction Pressure10 psi (69 kPa).*Seal Liner: Copper Alloy C93700.Flap Valve: Neoprene w/Fabric Reinforcing, Gray Iron 30 andDuctile Iron 65‐45‐12.Radial Bearing: Open Double Row Ball.Thrust Bearing: Open Single Row Ball.Bearing Lubrication: SAE 30 Non‐Detergent Oil.Flanges: Gray Iron 30.Gaskets: Vegetable Fiber.O‐Rings: Buna‐N.Hardware: Standard Plated Steel.Standard Equipment: Oil Level Sight Gauge, Hoisting Bail,Skid Base, Strainer and 90 Discharge Elbow.Optional Equipment: Battery. High Speed (55 MPH/89KM/H) Single Axle Pneumatic‐Tired Wheel Kit. Tandem AxleOver‐the‐Road Trailer.*Consult Factory for Applications Exceeding MaximumPressure and/or Temperature Indicated.
