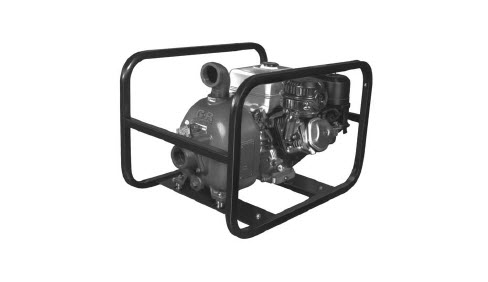

Gorman-Rupp 82D1-GX160 » General Equipment & Supplies, Inc.

Double tap to zoom



Straight-In Suction Design

Exclusive 80 Series pump design provides higher suction lift, increased efficiency and allows pumps to operate at higher suction lifts than most other self-priming centrifugal pumps.

Multiple Seal Options

80 Series pumps are available with Gorman-Rupp grease seals or self-lubricated mechanical seals.

High Efficiency Impeller

F_80SeriesEngineDriven_3.jpgMulti-vane open impeller is designed for high efficiency and will pass up to 2-3/8" (60 mm) solids, depending on pump model.

Replaceable Wearplate

F_80SeriesEngineDriven_4.jpgReplaceable wearplate allows for inexpensive maintenance during the life of the pump. No expensive castings to replace. Extra-thick construction for life.


Suction 2" (51 mm)
Discharge 2" (51 mm)
Solids Handling 0.63" (16 mm)
Material Aluminum
Impeller Material Ductile Iron
Seal Material Double Grease
Flange ASA
Drive Type Gasoline Engine
