Straight-In Suction Design
Exclusive 80 Series pump design provides higher suction lift, increased efficiency and allows pumps to operate at higher suction lifts than most other self-priming centrifugal pumps.
Multiple Seal Options
80 Series pumps are available with single and double seal options, grease, oil, and self-lubricated designs, depending on pump application. Carbon/ni-resist, carbon/ceramic, sintered bronze/steel, silicon carbide, and tungsten carbide seal faces. Fluorocarbon, Buna, and PTFE elastomers.
High Efficiency Impeller
Multi-vane open impeller is designed for high efficient. Impeller will handle up to 2 3/8" (60 mm) solids, depending on pump model.
Replaceable wearplate provides maximum operating efficiency at all times. No expensive castings to replace. Extra-thick construction for life.

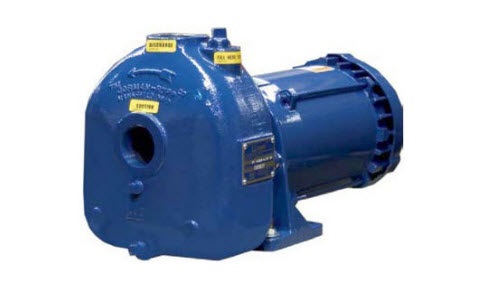

80 Series pumps are available as basic units for connection to customers' power source or may be flex coupled, close coupled, or V-belt driven by an electric motor. Pumps can also be powered by gasoline or diesel engines.
