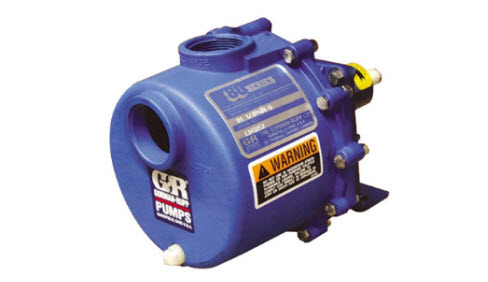

Gorman-Rupp 81 1/2P47A-E2 1P

Double tap to zoom



Straight-In Suction Design

Exclusive 80 Series pump design provides higher suction lift, increased efficiency and allows pumps to operate at higher suction lifts than most other self-priming centrifugal pumps.

Multiple Seal Options


80 Series pumps are available with single and double seal options, grease, oil, and self-lubricated designs, depending on pump application.  Carbon/ni-resist, carbon/ceramic, sintered bronze/steel, silicon carbide, and tungsten carbide seal faces.  Fluorocarbon, Buna, and PTFE elastomers.

High Efficiency Impeller

F_80Series_3 copy.jpg

Multi-vane open impeller is designed for high efficient. Impeller will handle up to 2 3/8" (60 mm) solids, depending on pump model.

Replaceable Wearplate

F_80Series_4.jpgReplaceable wearplate provides maximum operating efficiency at all times. No expensive castings to replace. Extra-thick construction for life.

Drive Variations

80 Series pumps are available as basic units for connection to customers' power source or may be flex coupled, close coupled, or V-belt driven by an electric motor. Pumps can also be powered by gasoline or diesel engines.


Suction 1.5" (38 mm)
Discharge 1.5" (38 mm)
Solids Handling 0.56" (14 mm)
Solids Handling Plastic
Impeller Material Plastic
Seal Material Carbon/Ceramic
Flange ASA
Drive Type Electric Motor
