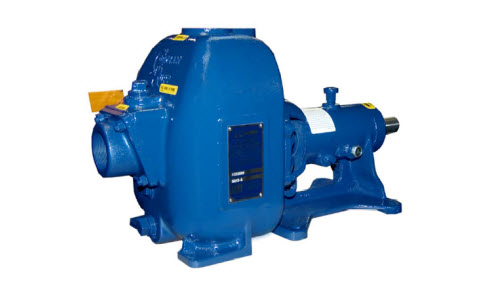

80 Series® 82H65-B
Features
Size: 2" x 2" (51 mm x 51 mm) NPT - Female.
Casing: Stainless Steel CD4MCu.
Maximum Operating Pressure 146 psi (1007 kPa)*.
Semi-Open Type, Four Vane Impeller: Stainless Steel
CD4MCu.
Handles 3/4" (19,1 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17-4 PH.
Replaceable Wear Plate: Stainless Steel CD4MCu.
Pedestal: Gray Iron 30.
Seal Plate: Stainless Steel CD4MCu.
Flap Valve: Fluorocarbon (DuPont Viton or Equivalent) and
Stainless Steel 316.
Shaft Sleeve: Stainless Steel 17-4 PH.
Radial and Thrust Bearings: Open Single Row Ball.
Bearing Lubrication: SAE 30 Non-Detergent Oil.
Suction Flange: Stainless Steel CD4MCu.
Gaskets: Fluorocarbon (DuPont Viton or Equivalent).
Hardware: Stainless Steel 316.
Oil Level Sight Gauge.
Optional Equipment: Suction and Discharge Companion
Flange. 120/240 Volt Casing Heater. Consult Factory for
Additional Options.
*Consult Factory for Applications Exceeding Maximum
Pressure and/or Temperature Indicated.
Specifications
| Suction | 2" (51 mm) |
| Discharge | 2" (51 mm) |
| Solids Handling | 0.75" (19 mm) |
| Solids Handling | CD4MCu |
| Impeller Material | CD4MCu |
| Seal Material | Silicon Carbide |
| Flange | ASA |
| Drive Type | Basic |
