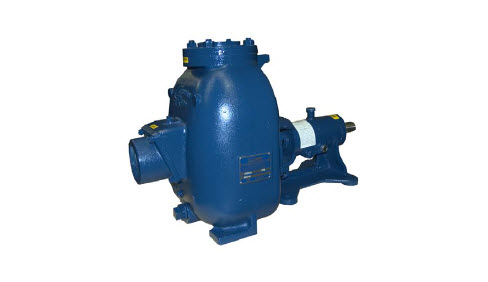

Gorman-Rupp 83C52-B
Double tap to zoom
80 Series® 83C52-B
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Size: 3" x 3" (76 mm x 76 mm) NPT - Female.
Casing: Gray Iron 30.
Maximum Operating Pressure 85 psi (586 kPa)*.
Semi-Open Type, Four Vane Impeller: Gray Iron 30.
Handles 7/8" (22,4 mm) Diameter Spherical Solids.
Impeller Shaft: Carbon Steel 1045.
Replaceable Wear Plate: Carbon Steel 1026.
Pedestal: Gray Iron 30.
Seal Plate: Gray Iron 30.
Shaft Sleeve: Alloy Steel 4130.
Flap Valve: Buna-N w/Nylon Reinforcement and Gray Iron 30.
Radial and Thrust Bearings: Open Single Row Ball.
Bearing Lubrication: SAE 30 Non-Detergent Oil.
Flanges: Gray Iron 30.
Gaskets: Cork and Vegetable Fiber.
O-Rings: Buna-N
Hardware: Standard Plated Steel and Stainless Steel.
Oil Level Sight Gauge.
Optional Equipment: Consult Factory.
*Consult Factory for Applications Exceeding Maximum Pressure
and/or Temperature Indicated.
Specifications
| Suction | 3" (76 mm) |
| Discharge | 3" (76 mm) |
| Solids Handling | 0.88" (22 mm) |
| Solids Handling | Cast Iron |
| Impeller Material | Cast Iron |
| Seal Material | Silicon Carbide |
| Flange | ASA |
| Drive Type | Basic |
