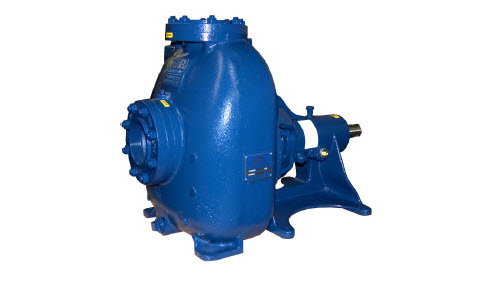

80 Series® 84A52-B
Features
Size: 4" x 4" (102 mm x 102 mm) NPT - Female.
Casing: Gray Iron 30.
Maximum Operating Pressure 82 psi (565 kPa)*.
Semi-Open Type, Three Vane Impeller: Gray Iron 30.
Handles 1 1/8" (28,7 mm) Diameter Spherical Solids.
Impeller Shaft: Alloy Steel 4150.
Replaceable Wear Plate: Carbon Steel 1015.
Pedestal: Gray Iron 30.
Seal Plate: Gray Iron 30.
Shaft Sleeve: Alloy Steel 4130.
Flap Valve: Buna-N and Steel.
Radial Bearings: Open Single Row Ball.
Thrust Bearings: Open Double Row Ball.
Bearing Lubrication: SAE 30 Non-Detergent Oil.
Flanges: Gray Iron 30.
Gaskets: Cork.
O-Rings: Buna-N
Hardware: Standard Plated Steel and Stainless Steel.
Oil Level Sight Gauge.
Optional Equipment: Consult Factory.
*Consult Factory for Applications Exceeding Maximum
Pressure and/or Temperature Indicated
Specifications
| Suction | 4" (102 mm) |
| Discharge | 4" (102 mm) |
| Solids Handling | 1.13" (29 mm) |
| Solids Handling | Cast Iron |
| Impeller Material | Cast Iron |
| Seal Material | Silicon Carbide |
| Flange | ASA |
| Drive Type | Basic |
