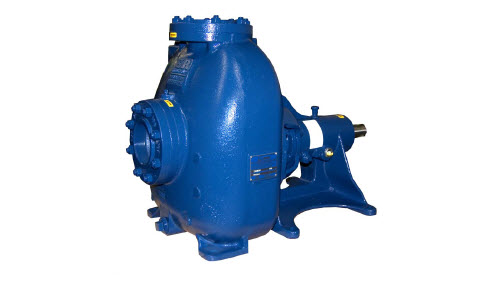

Gorman-Rupp 84B3-B

Double tap to zoom

80 Series® 84B3-B
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Size: 4" x 4" (102 mm x 102 mm) NPT - Female.
Casing: (Models 84B3-B and 84B52-B) Gray Iron 30.
(Model 84B31-B): Ductile Iron 65-45-12.
Maximum Operating Pressure 74 psi (510 kPa)*.
Semi-Open Type, Four Vane Impeller: Gray Iron 30.
Handles 1 1/4" (31,8 mm) Diameter Spherical Solids.
Impeller Shaft: Carbon Steel 1045.
Replaceable Wear Plate: Carbon Steel 1026.
Pedestal: Gray Iron 30.
Seal Plate: (Models 84B3-B and 84B52-B) Gray Iron 30.
(Model 84B31-B): Ductile Iron 65-45-12.
Shaft Sleeve: Alloy Steel 4130.
Flap Valve: Buna-N and Carbon Steel.
Radial Bearing: Open Single Row Ball.
Thrust Bearing: Open Double Row Ball.
Bearing Lubrication: SAE 30 Non-Detergent Oil.
Flanges: Gray Iron 30.
Gaskets: Cork.
O-Ring: Buna-N.
Hardware: Standard Plated Steel.
Optional Equipment: Strainer. 120V/240V Casing Heater.
Gray Iron 30 Suction and Discharge Spool Flanges:
4" ASA and100 mm DIN 2527 (PN 16).
*Consult Factory for Applications Exceeding Maximum
Pressure and/or Temperature Indicated.
Specifications
Suction | 4" (102 mm) |
Discharge | 4" (102 mm) |
Solids Handling | 1.25" (32 mm) |
Solids Handling | Cast Iron |
Impeller Material | Cast Iron |
Seal Material | Carbon/Ni-Resist |
Flange | ASA |
Drive Type | Basic |
