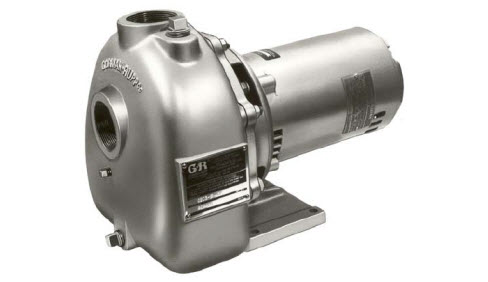

Gorman-Rupp 02D3-E1 1P

Double tap to zoom



Size: 2” x 2” (51 mm x 51 mm) NPT - Female.
Casing: Gray Iron 30.
Maximum Operating Pressure 38 psi (262 kPa)*
Enclosed Type, Six Vane Impeller: Copper Alloy C83600.
Handles 3/8” (9,5 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 416 (Provided with Motor).
Replaceable Vane Plate; Gray Iron 30.
Intermediate: Gray Iron 30.
Seal: Type 21, Mechanical, Self‐Lubricated. Carbon Rotating
Face. Ni‐Resist Stationary Face. Fluorocarbon Elastomers
(DuPont Viton or Equivalent). Stainless Steel 18‐8 Cage
and Spring. Maximum Temperature of Liquid Pumped,
160F (71C).*
Gaskets: NC710 Cork w/Nitrile Binder.
O‐Ring: Fluorocarbon (DuPont Viton or Equivalent).
Hardware: Standard Plated Steel.
Standard Equipment: Strainer.
Optional Equipment: All Iron Construction. Steel Strainer.
Wheel Kit w/Semi‐Pneumatic Tires.
*Consult Factory for Applications Exceeding
Maximum Pressure and/or Temperature Indicated.


Suction 2" (51 mm)
Discharge 2" (51 mm)
Solids Handling 0.38" (10 mm)
Material Cast Iron
Impeller Material Copper Alloy
Seal Material Carbon/Ni-Resist
Flange ASA
Drive Type Electric Motor
