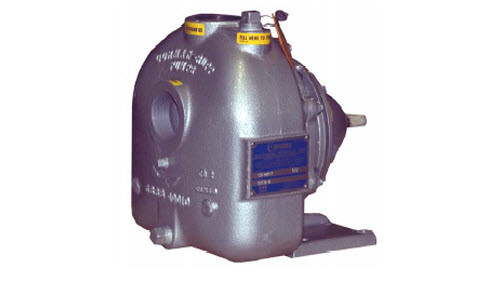

Gorman-Rupp 02E3-B

Size: 2” x 2” (51 mm x 51 mm) NPT - Female
Casing: Gray Iron 30.
Maximum Operating Pressure 40 psi (276 kPa)*
Enclosed Type, Six Vane Impeller: Copper Alloy C83600.
Handles 7/16” (11 mm) Diameter Spherical Solids.
Impeller Shaft: Carbon Steel 1215.
Replaceable Vane Plate: Gray Iron 30.
Bearing Housing: Gray Iron 30.
Intermediate: Gray Iron 30.
Thrust and Radial Bearings: Sealed Single Row Ball.
Gaskets: NC710 Cork with Nitrile Binder.
O‐Ring: Fluorocarbon (DuPont Viton or Equivalent).
Hardware: Standard Plated Steel.
Optional Equipment: All Iron Construction. Ductile Iron
Casing. Type 9 Mechanical Self‐Lubricated Seal w/Carbon
and Ceramic Faces and PTFE Elastomers.
*Consult Factory for Applications Exceeding Maximum
Pressure and/or Temperature Indicated.
