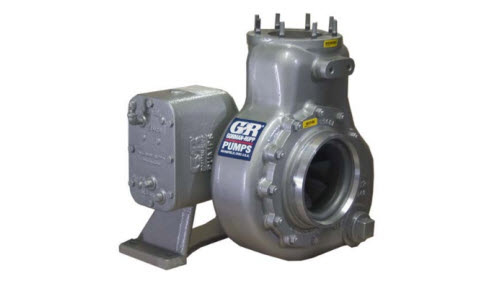

Gorman-Rupp 06D1-GAR » General Equipment & Supplies, Inc.

Double tap to zoom



Size: 6” (152 mm) Victaulic Suction.
4” (102 mm) Petroleum Discharge Flange.
Casing: Aluminum Alloy 356‐T6.
Maximum Operating Pressure 293 psi (2020 kPa).*
Enclosed Type, Eight Vane Impeller: Aluminum Alloy 356‐T6.
Handles 7/8” (22 mm) Diameter Spherical Solids.
Impeller/Pinion Shaft: Alloy Steel 8620.
Two Replaceable Wear Rings: Gray Iron 30.
Suction Head: Aluminum Alloy 356‐T6.
Gearbox Housing: Gray Iron 30.
Gearbox Lubrication: SAE 90 Gear Oil.
Gears: Steel Alloy 8620.
Gear Ratio: 2.18:1 Increaser.
Bearings: Open Single Row Ball.
Gaskets: Vegetable Fiber and Cork.
Hardware: Standard Plated Steel.
Optional Equipment: (06D1‐GA Only) Copper Alloy C83600
Wear Rings and Impeller.
*Consult Factory for Applications Exceeding Maximum
Pressure and/or Temperature Indicated.


Suction 6" (152 mm)
Discharge 4" (102 mm)
Solids Handling 0.88" (22 mm)
Material Aluminum
Impeller Material Aluminum
Seal Material Carbon/Ni-Resist
Flange ASA
Drive Type PTO
