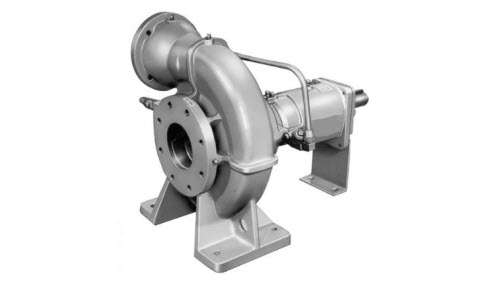

PUMP SPECIFICATIONSSize: 6" x 4" (152mm x 102 mm) Flanged.Casing: (RD4A31-B) Ductile Iron 65-45-12.(RD4A32-B) Cast Steel 70-36.Maximum Operating Pressure 203 psi (1386 kPa).*Enclosed Type, Five Vane Impeller: Aluminum 356-T6.Handles 1/2" (12,7 mm) Diameter Spherical Solids.Impeller Shaft: Steel 1045.Rotor: Copper Alloy C93400.Bearing Housing: Ductile Iron 65-45-12.Body Cover: (RD4A31-B) Ductile Iron 65-45-12.(RD4A32-B) Cast Steel 70-36.Center/Spacer Plate: (RD4A31-B) Ductile Iron 65-45-12.(RD4A32-B) Cast Steel 70-36.Radial Bearing: Open Double Row Ball Type.Thrust Bearing: Open Single Row Ball Type.Bearing Lubrication: SAE 30 Non-Detergent Oil.Gaskets: Vegetable Fiber, PTFE and Cork.Priming: Rotary Vane Type with Built-in Spring-Loaded Priming Assist Valve.Optional Equipment: Stainless Steel 416 Impeller Shaft, Buna-N Seal,PTFE Seal with Fluorocarbon O-Ring, PTFE Seal with Buna-N O-Ring, Standard4" Check Valve (Required for Priming).*Consult Factory for Applications Exceeding Maximum Pressure and/orTemperature Indicated.
