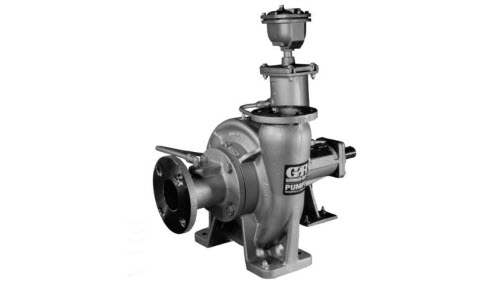

Size: 3" x 2" (76 x 51 mm) Flanged.Casing: (RS2A31-BAR) Ductile Iron 65-45-12.(RS2A32-BAR) Cast Steel 70-36.Maximum Operating Pressure 48 psi (331 kPa).*Enclosed Type, Four Vane Impeller: Aluminum 356-T6.Handles 1/4" (6,4 mm) Diameter Spherical Solids.Impeller Shaft: Steel 1045.Rotor: Copper Alloy C93200.Bearing Housing: Ductile Iron 65-45-12.Bearing Housing Lubrication: Grease.Body Cover: (RS2A31-BAR) Ductile Iron 65-45-12.(RS2A32-BAR) Cast Steel 70-36.Center/Spacer Plate: (RS2A31-BAR) Ductile Iron 65-45-12.(RS2A32-BAR) Cast Steel 70-36.Suction Spool Flange: Cast Steel 70-36.Radial Bearing: Permanently Sealed Single Row Ball Type.Thrust Bearing: Permanently Sealed Single Row Ball Type.Gaskets: Vegetable Fiber, PTFE and Cork.Priming: Rotary Vane Type Priming Pump.Air Release Valve : Cast Iron/Stainless Steel.Optional Equipment: Cast Steel 70-36 Threaded Suction and DischargeCompanion Flange Kit, Copper Alloy C93700 Impeller, Group Grind withCast Iron Rotor (RS2A31-BAR Only),Stainless Steel 416 Impeller Shaft,Buna-N Seal, PTFE Seal with Fluorocarbon O-Ring, PTFE Seal with Buna-N O-Ring, Oil Filled Bearing Housing Assembly.*Consult Factory for Applications Exceeding Maximum Pressure and/orTemperature Indicated.
