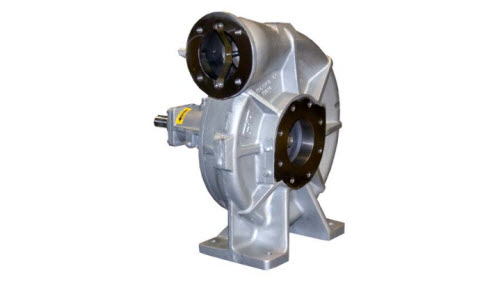

Size: 4" x 3" (102 mm x 76 mm) Flanged.Casing: (RS3A31-B) Ductile Iron 65-45-12.(RS3A32-B) Cast Steel 70-36.Maximum Operating Pressure 71 psi (490 kPa).*Enclosed Type, Five Vane Impeller: Aluminum 356-T6.Handles 3/8" (9,5 mm) Diameter Spherical Solids.Impeller Shaft: Steel 1045.Rotor: Copper Alloy C93400.Bearing Housing: Ductile Iron 65-45-12.Bearing Housing Lubrication: Grease.Body Cover: (RS3A31-B) Ductile Iron 65-45-12.(RS3A32-B) Cast Steel 70-36.Center/Spacer Plate: (RS3A31-B) Ductile Iron 65-45-12.(RS3A32-B) Cast Steel 70-36.Radial Bearing: Permanently Sealed Single Row Ball Type.Thrust Bearing: Permanently Sealed Single Row Ball Type.Gaskets: Vegetable Fiber, PTFE and Cork.Priming: Rotary Vane Type with Built-in Spring-Loaded Priming Assist Valve.Optional Equipment: Cast Steel 70-36 Threaded Suction and DischargeCompanion Flange Kit, Copper Alloy C93700 Impeller, Group Grind with CastIron Rotor (RS3A31-B Only), Stainless Steel 416 Impeller Shaft, Buna-N Seal,PTFE Seal with Fluorocarbon O-Ring, PTFE Seal with Buna-N O-Ring, OilFilled Bearing Housing Assembly.*Consult Factory for Applications Exceeding Maximum Pressure and/orTemperature Indicated.
