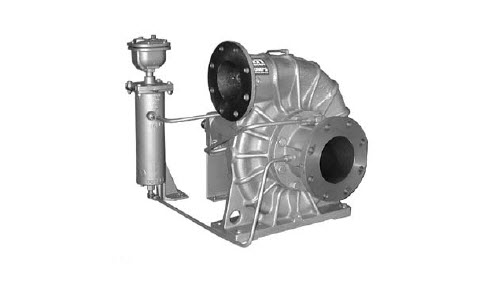

Size: 6" x 5" (152 mm x 127 mm) Flanged.Casing: (RS5A31-BAR) Ductile Iron 65-45-12.(RS5A32-BAR) Cast Steel 70-36.Maximum Operating Pressure 81 psi (558 kPa).*Enclosed Type, Five Vane Impeller: Aluminum 356-T6.Handles 1/2" (12,7 mm) Diameter Spherical Solids.Impeller Shaft: Steel 1045.Rotor: Copper Alloy C93400.Bearing Housing: Ductile Iron 65-45-12.Body Cover: (RS5A31-BAR) Ductile Iron 65-45-12.(RS5A32-BAR) Cast Steel 70-36.Center/Spacer Plate: (RS5A31-BAR) Ductile Iron 65-45-12.(RS5A32-BAR) Cast Steel 70-36.Suction Spool Flange: Cast Steel 70-36.Radial Bearing: Open Double Row Ball Type.Thrust Bearing: Open Single Row Ball Type.Bearing Lubrication: SAE 30 Non-Detergent Oil.Gaskets: Vegetable Fiber, PTFE and Cork.Priming: Rotary Vane Type Priming Pump.Air Release Valve : Cast Iron/Stainless Steel.Optional Equipment: Standard 5" Discharge Check Valve (Required forPriming), Stainless Steel 416 Impeller Shaft, PTFE Seal with FluorocarbonO-Ring, PTFE Seal with Buna-N O-Ring.*Consult Factory for Applications Exceeding Maximum Pressure and/orTemperature Indicated.
