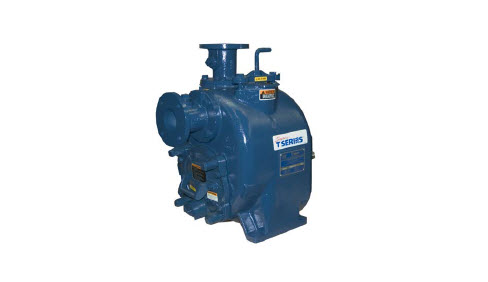

Super T Series® T3A61S-B /F
Features
Size: 3” x 3” (76 mm x 76 mm) NPT ‐ Female.
Casing: Gray Iron 30. Maximum Operating Pressure 86 psi (593 kPa).* Semi‐Open Type, Two Vane Impeller: Stainless Steel 316.
Handles 2 1/2” (63,5 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17‐4 PH.
Replaceable Wear Plate: Stainless Steel 316.
Removable Adjustable Cover Plate: Gray Iron 30; 35 lbs. (16 kg).
Flap Valve: Neoprene w/Nylon and Steel Reinforcing.
Seal Plate: Stainless Steel 316.
Bearing Housing: Gray Iron 30.
Radial and Thrust Bearings: Open Single Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Flanges: Gray Iron 30.
Gaskets: Buna‐N w/Compressed Synthetic Fibers, Vegetable Fiber,
PTFE, Cork and Rubber.
O‐Rings: Buna‐N.
Internal Wetted Hardware: Stainless Steel 316.
External Hardware: Standard Plated Steel.
Pressure Relief Valve: Stainless Steel 316.
Bearing and Seal Cavity Oil Level Sight Gauges.
Optional Equipment: Automatic Air Release Valve. Metal Bellows Seal. Stainless Steel CD4MCu Impeller, Seal Plate and Wear Plate. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit. Self‐Cleaning Wear Plate.
Gray Iron 30 Suction and Discharge Spool Flanges:
3” ASA (Specify Model T3A61S‐B /F).
80 mm DIN 2527 (PN 16) (Specify Model T3A61S‐B /FM).
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
Specifications
| Suction | 3" (76 mm) |
| Discharge | 3" (76 mm) |
| Solids Handling | 2.5" (64 mm) |
| Solids Handling | Cast Iron |
| Impeller Material | Stainless Steel |
| Seal Material | Silicon Carbide |
| Flange | ASA Spool |
| Drive Type | Basic |
