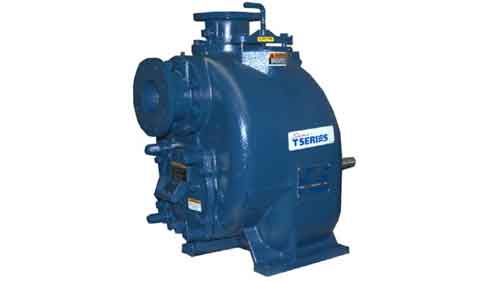

Super T Series® T4A60S-B /FM
Features
Size: 4” x 4” (101 mm x 101 mm) NPT ‐ Female.
Casing: Gray Iron 30. Maximum Operating Pressure 86 psi (593 kPa).*
Semi‐Open Type, Two Vane Impeller: Ductile Iron 65‐45‐12. Handles 3” (76,2 mm) Diameter Spherical Solids.
Impeller Shaft: Alloy Steel 4150.
Shaft Sleeve: Alloy Steel 4130.
Replaceable Wear Plate: Carbon Steel ASTM A36.
Removable Adjustable Cover Plate: Gray Iron 30; 41 lbs. (18 kg).
Flap Valve: Neoprene w/Nylon and Steel Reinforcing.
Seal Plate: Gray Iron 30.
Bearing Housing: Gray Iron 30.
Radial Bearing: Open Single Row Ball.
Thrust Bearing: Open Double Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Flanges: Gray Iron 30.
Gaskets: Buna‐N, w/Compressed Synthetic Fibers, Vegetable Fiber, PTFE, Cork, and Rubber.
O‐Rings: Buna‐N.
Hardware: Standard Plated Steel.
Brass Pressure Relief Valve.
Bearing and Seal Cavity Oil Level Sight Gauges.
Optional Equipment: Metal Bellows Seal. Automatic Air Release Valve. G‐R Hard Iron Impeller, Seal Plate, and Wear Plate. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit. GR Hard Iron Casing. Self‐Cleaning Wear Plate.
Gray Iron 30 Suction and Discharge Spool Flanges:
4” ASA (Specify Model T4A60S‐B /F). 100 mm DIN 2527 (PN 16) (Specify Model T4A60S‐B /FM).
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
Specifications
| Suction | 4" (102 mm) |
| Discharge | 4" (102 mm) |
| Solids Handling | 3" (76 mm) |
| Solids Handling | Cast Iron |
| Impeller Material | Ductile Iron |
| Seal Material | Silicon Carbide |
| Flange | DIN Spool |
| Drive Type | Basic |
