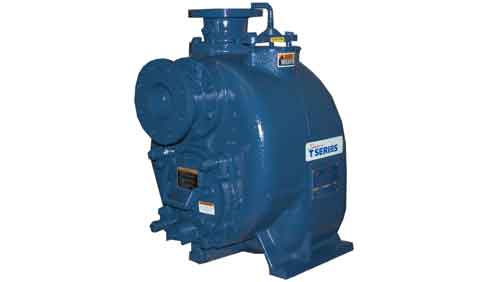

Size: 4” x 4” (101 mm x 101 mm) NPT ‐ Female.Casing: Gray Iron 30.Maximum Operating Pressure 86 psi (593 kPa).*Semi‐Open Type, Two Vane Impeller: Stainless Steel 316.Handles 3” (76,2 mm) Diameter Spherical Solids.Impeller Shaft: Stainless Steel 17‐4 PH.Replaceable Wear Plate: Stainless Steel 316.Removable Adjustable Cover Plate: Gray Iron 30; 40 lbs. (18 kg).Flap Valve: Neoprene w/Nylon and Steel Reinforcing.Seal Plate: Stainless Steel 316.Bearing Housing: Gray Iron 30.Radial Bearing: Open Single Row Ball.Thrust Bearing: Open Double Row Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.Flanges: Gray Iron 30.Gaskets: Buna‐N, w/Compressed Synthetic Fibers, Vegetable Fiber,PTFE, Cork, and Rubber.O‐Rings: Buna‐N.Internal Wetted Hardware: Stainless Steel 316.External Hardware: Standard Plated Steel.Pressure Relief Valve: Stainless Steel 316.Bearing and Seal Cavity Oil Level Sight Gauges.Optional Equipment: Metal Bellows Seal. Automatic Air Release Valve.Stainless Steel CD4MCu Impeller, Seal Plate and Wear Plate.120V/240V Casing Heater. High Pump Temperature Shutdown Kit.Self‐Cleaning Wear Plate.Gray Iron 30 Suction and Discharge Spool Flanges:4” ASA (Specify Model T4A61S‐B /F). 100 mm DIN 2527 (PN 16) (Specify Model T4A61S‐B /FM).*Consult Factory for Applications Exceeding MaximumPressure and/or Temperature Indicated.
