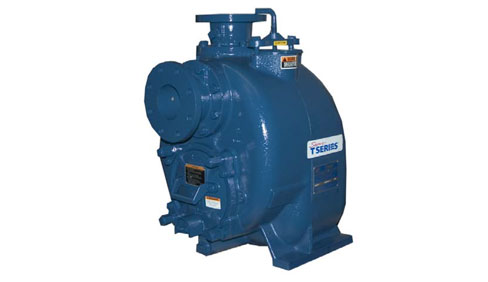

Size: 4” x 4” (101 mm x 101 mm) NPT ‐ Female.Casing: Stainless Steel CD4MCu. Maximum Operating Pressure 97 psi (669 kPa).*Semi‐Open Type, Five Vane Impeller: Stainless Steel CD4MCu. Handles 1 1/2” (38,1 mm) Diameter Spherical Solids.Impeller Shaft: Stainless Steel 17‐4 PH.Replaceable Wear Plate: Stainless Steel CD4MCu.Removable Adjustable Cover Plate: Stainless Steel CD4MCu; 54 lbs. (24 kg).Flap Valve: Fluorocarbon (DuPont Viton or Equivalent) w/Stainless Steel Reinforcing.Seal Plate: Stainless Steel CD4MCu.Bearing Housing: Stainless Steel CD4MCu.Radial Bearing: Open Single Row Ball.Thrust Bearing: Open Double Row Ball.Bearing and Seal Cavity Lubrication: SAE No. 30 Non‐Detergent Oil.Suction Flange: Stainless Steel CD4MCu.Discharge Flange: Stainless Steel 316.Gaskets: Fluorocarbon (DuPont Viton or Equivalent) and PTFE.O‐Rings: Fluorocarbon (DuPont Viton or Equivalent).Hardware: Stainless Steel 316.Pressure Relief Valve: Stainless Steel 316.Bearing and Seal Cavity Oil Level Sight Gauges.Optional Equipment: Metal Bellows Seal. Automatic Air Release Valve. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit.Stainless Steel CD4MCu Suction and Discharge Spool Flanges:4” ASA (Specify Model T4B65S‐B /F).100 mm DIN 2527 (PN 16) (Specify Model T4B65S‐B /FM).*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
