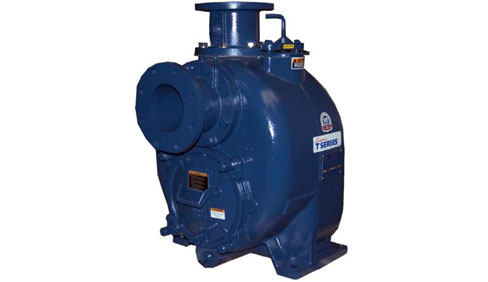

Size: 6” x 6” (152 mm x 152 mm) NPT ‐ Female.Casing: Gray Iron 30. Maximum Operating Pressure 81 psi (558 kPa).*Semi‐Open Type, Six Vane Impeller: Ductile Iron 65‐45‐12. Handles 1 1/2” (38,1 mm) Diameter Spherical Solids.Impeller Shaft: Alloy Steel 4150.Shaft Sleeve: Alloy Steel 4130.Replaceable Wear Plate: Gray Iron 30.Removable Adjustable Cover Plate: Gray Iron 30; 62 lbs. (28 kg).Flap Valve: Neoprene w/Nylon and Steel Reinforcing.Seal Plate: Gray Iron 30.Bearing Housing: Gray Iron 30.Radial Bearing: Open Single Row Ball.Thrust Bearing: Open Double Row Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.Flanges: Gray Iron 30.Gaskets: Buna‐N, Compressed Synthetic Fibers, PTFE, Vegetable Fiber, Cork, and Rubber.O‐Rings: Buna‐N.Hardware: Standard Plated Steel.Brass Pressure Relief Valve.Bearing and Seal Cavity Oil Level Sight Gauges.Optional Equipment: Stainless Steel 316 Pressure Relief Valve. Automatic Air Release Valve. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit. G‐R Hard Iron Casing.Gray Iron 30 Suction and Discharge Spool Flanges:6” ASA (Specify Model T6B3S‐B /F).150 mm DIN 2527 (PN16) (Specify Model T6B3S‐B /FM). *Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
