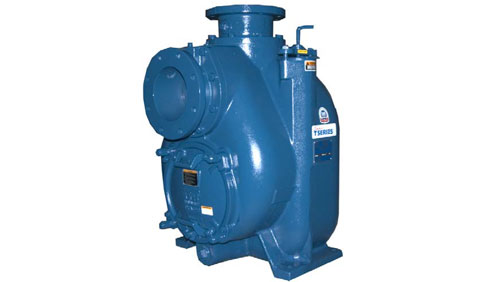

Size: 8” (203 mm) ASA Flanged Suction x 8” (203 mm) NPT Female Discharge.Casing: Gray Iron 30. Maximum Operating Pressure 83 psi (572 kPa).* Semi‐Open Type, Two Vane Impeller: Ductile Iron 65‐45‐12. Handles 3” (76,2 mm) Diameter Spherical Solids.Impeller Shaft: Alloy Steel 4150.Shaft Sleeve: Alloy Steel 4130.Replaceable Wear Plate: Gray Iron 30.Removable Adjustable Cover Plate: Gray Iron 30; 94 lbs. (43 kg).Flap Valve: Neoprene w/Nylon and Steel Reinforcing.Seal Plate: Gray Iron 30.Radial and Thrust Bearings: Open Double Row Ball.Bearing Housing: Gray Iron 30.Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.Flanges: Gray Iron 30.Gaskets: Buna‐N, Compressed Synthetic Fibers, PTFE, Cork and Rubber.O‐Rings: Buna‐N.Hardware: Standard Plated Steel.Brass Pressure Relief Valve.Bearing and Seal Cavity Oil Level Sight Gauges.Optional Equipment: Metal Bellows Seal. Automatic Air Release Valve. High Pump Temperature Shutdown Kit. 120V/240V Casing Heater. Self‐Cleaning Wear Plate.Gray Iron 30 Spool Flanges:8” ASA Discharge (Specify Model T8A3S‐B /F).200 mm DIN 2527 (PN 16) Suction and Discharge (Specify Model T8A3S‐B /FM).*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
