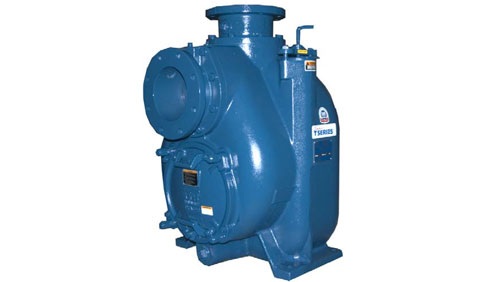

Gorman-Rupp T8A61S-B/F

Double tap to zoom



Size:8” (203 mm) ASA Flanged Suction x 8” (203 mm) NPT Female Discharge.
Casing: Gray Iron 30. Maximum Operating Pressure 83 psi (572 kPa).*
Semi‐Open Type, Two Vane Impeller: Stainless Steel 316. Handles 3” (76,2 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17‐4 PH.
Replaceable Wear Plate: Stainless Steel 316.
Removable Adjustable Cover Plate: Gray Iron 30; 94 lbs. (43 kg).
Flap Valve: Neoprene w/Nylon and Steel Reinforcing.
Seal Plate: Stainless Steel 316.
Bearing Housing: Gray Iron 30.
Radial and Thrust Bearings: Open Double Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Flanges: Gray Iron 30.
Gaskets: Buna‐N, Compressed Synthetic Fibers, PTFE, Cork, and Rubber.
O‐Rings: Buna‐N.
Internal Wetted Hardware: Stainless Steel 316.
External Hardware: Standard Plated Steel.
Pressure Relief Valve: Stainless Steel 316.
Bearing and Seal Cavity Oil Level Sight Gauges.
Optional Equipment: Metal Bellows Seal. Automatic Air Release Valve. Stainless Steel CD4MCu Impeller, Seal Plate and Wear Plate. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit. Self‐Cleaning Wear Plate.
Gray Iron 30 Spool Flanges:
8” ASA Discharge (Specify Model T8A61S‐B /F)
200 mm DIN 2527 (PN 16) Suction and Discharge (Specify Model T8A61S‐B /FM)
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.


Suction 8" (203 mm)
Discharge 8" (203 mm)
Solids Handling 3" (76 mm)
Solids Handling Cast Iron
Impeller Material Stainless Steel
Seal Material Silicon Carbide
Flange ASA Spool
Drive Type Basic
