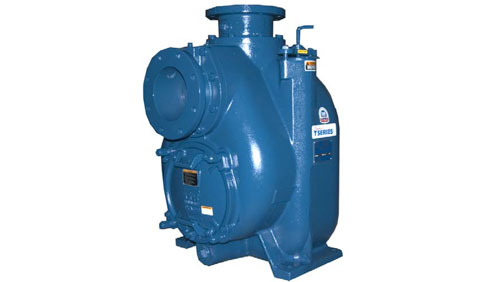

Super T Series® T8A65S-B/FM
Features
Size: 8” (203 mm) ASA Flanged Suction x 8” (203 mm) NPT Female Discharge.
Casing: Stainless Steel CD4MCu. Maximum Operating Pressure 83 psi (572 kPa).*
Semi‐Open Type, Two Vane Impeller: Stainless Steel CD4MCu. Handles 3” (76,2 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17-4 PH.
Replaceable Wear Plate: Stainless Steel CD4MCu.
Removable Adjustable Cover Plate: Stainless Steel CD4MCu; 97 lbs. (44 kg).
Seal Plate: Stainless Steel CD4MCu.
Flap Valve: Fluorocarbon (DuPont Viton or Equivalent) w/Stainless Steel Reinforcing.
Bearing Housing: Stainless Steel CD4MCu.
Radial and Thrust Bearings: Open Double Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Suction Flange: Stainless Steel CD4MCu.
Discharge Flange: Stainless Steel 316.
Gaskets: Fluorocarbon (DuPont Viton or Equivalent) and PTFE.
O‐Rings: Fluorocarbon (DuPont Viton or Equivalent).
Hardware: Stainless Steel 316.
Pressure Relief Valve: Stainless Steel 316.
Bearing and Seal Cavity Oil Level Sight Gauges.
Optional Equipment: Metal Bellows Seal. Automatic Air Release Valve. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit. Self‐Cleaning Wear Plate.
Stainless Steel CD4MCu Spool Flanges:
8” ASA Discharge (Specify Model T8A65S‐B /F)
200 mm DIN 2527 (PN 16) Suction and Discharge (Specify Model T8A65S‐B /FM).
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
Specifications
| Suction | 8" (203 mm) |
| Discharge | 8" (203 mm) |
| Solids Handling | 3" (76 mm) |
| Solids Handling | CD4MCu |
| Impeller Material | CD4MCu |
| Seal Material | Silicon Carbide |
| Flange | DIN Spool |
| Drive Type | Basic |
