Share This Product:

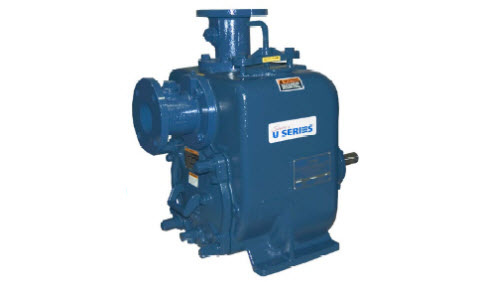

Size: 3" x 3" (76 mm x 76 mm) NPT - Female.Casing: Gray Iron 30.Maximum Operating Pressure 137 psi (945 kPa).*Semi-Open Type, Six Vane Impeller: Ductile Iron 60-40-18.Handles 13/16" (20,6 mm) Diameter Spherical Solids.Impeller Shaft: Alloy Steel 4150.Replaceable Wear Plate: Gray Iron 30.Removable Adjustable Cover Plate: Gray Iron 30; 48 lbs. (22 kg).Bearing Housing: Gray Iron 30.Seal Plate: Gray Iron 30.Shaft Sleeve: Alloy Steel 4130.Flap Valve: Neoprene w/Nylon and Steel Reinforcing.Radial Bearing: Open Single Row Ball.Thrust Bearing: Open Double Row Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non-Detergent Oil.Flanges: 125# Gray Iron 30.Gaskets: Cork, Rubber, Vegetable Fiber, PTFE, Buna-Nw/Compressed Synthetic Fibers.O-Rings: Buna-N.Hardware: Standard Plated Steel.Brass Pressure Relief Valve.Bearing and Seal Cavity Oil Level Sight Gauges.Optional Equipment: Stainless Steel 316 Pressure ReliefValve. G-R Hard Iron Impeller, Seal Plate and Wear Plate.Automatic Air Release Valve. 120V/240V Casing Heater. HighPump Temperature Shutdown Kit. Permalon, Kalrez orFluorocarbon Metal Bellows Seals. Stainless Steel Cartridge Seal.Gray Iron 30 Suction and Discharge Spool Flanges:3" ASA (Specify Model U3B60S-B /F).80 mm DIN 2527 (PN 16). (Specify Model U3B60S-B /FM).*Consult Factory for Applications Exceeding MaximumPressure and/or Temperature Indicated.
Check out our financing special offering 0% for 48 months!
