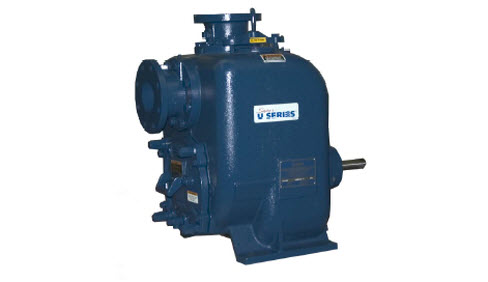

Size: 4" x 4" (102 mm x 102 mm) NPT - Female.Casing: Gray Iron 30.Maximum Operating Pressure 128 psi (883 kPa).*Semi-Open Type, Six Vane Impeller: Ductile Iron 60-40-18.Handles 1 1/8" (28,6 mm) Diameter Spherical Solids.Impeller Shaft: Alloy Steel 4150.Replaceable Wear Plate: Gray Iron 30.Removable Adjustable Cover Plate: Gray Iron 30; 60 lbs. (27 kg).Bearing Housing: Gray Iron 30.Seal Plate: Gray Iron 30.Shaft Sleeve: Alloy Steel 4130.Flap Valve: Neoprene w/Nylon and Steel Reinforcing.Radial Bearing: Open Single Row Ball.Thrust Bearing: Open Double Row Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non-Detergent Oil.Flanges: 125# Gray Iron 30.Gaskets: Cork, Rubber, Vegetable Fiber, PTFE, Buna-N w/CompressedSynthetic Fibers.O-Rings: Buna-N.Hardware: Standard Plated Steel.Brass Pressure Relief Valve.Bearing and Seal Cavity Oil Level Sight Gauges.Optional Equipment: Stainless Steel 316 Seal Plate, Wear Plate and PressureRelief Valve. G-R Hard Iron Impeller, Seal Plate and Wear Plate. AutomaticAir Release Valve. 120V/240V Casing Heater. High PumpTemperature Shutdown Kit. Permalon, Kalrez or Fluorocarbon MetalBellows Seals. Stainless Steel Cartridge Seal.Gray Iron 30 Suction and Discharge Spool Flanges:4" ASA (Specify Model U4B60S-B /F).100 mm DIN 2527 (PN 16) (Specify Model U4B60S-B /FM).*Consult Factory for Applications Exceeding Maximum Pressureand/or Temperature Indicated.
