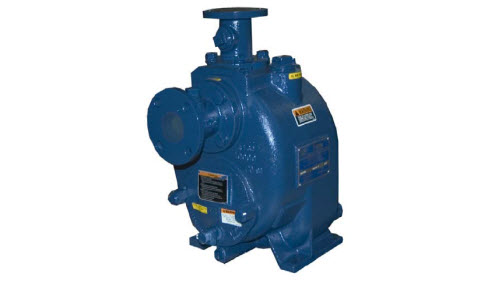

Size: 2" x 2" (51 mm x 51 mm) NPT - Female.Casing: Gray Iron 30. Maximum Operating Pressure 79 psi (545 kPa).*Semi-Open Type, Two Vane Impeller: Ductile Iron 65-45-12. Handles 1 1/2" (38,1 mm) Diameter Spherical Solids.Impeller Shaft: Alloy Steel 4150.Shaft Sleeve: Alloy Steel 4130.Replaceable Wear Plate: Carbon Steel 1026Removable Cover Plate: Gray Iron 30; 20 lbs. (9 kg).Seal Plate: Gray Iron 30.Externally Replaceable Flap Valve: Neoprene w/Steel Reinforcing.Bearing Housing: Gray Iron 30.Radial Bearing: Open Single Row Ball.Thrust Bearing: Open Double Row Ball.Bearing and Seal Cavity Lubrication: SAE 30 Non-Detergent Oil.Flanges: Gray Iron 30.Gaskets: Buna-N, Vegetable Fiber, Cork and Rubber.O-Rings: Buna-N.Internal Wetted Hardware: Standard Plated Steel.External Hardware: Standard Plated Steel.Brass Pressure Relief Valve.Bearing and Seal Cavity Oil Level Sight Gauges.Optional Equipment: Automatic Air Release Valve. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit. GR Hard Iron Seal Plate. Hardened Steel Wear Plate. Permalon Seal. Self-Cleaning Wear Plate.Gray Iron 30 Suction and Discharge Spool Flanges:2" ASA (Specify Model T2A3-B /F).50 mm DIN 2527 (PN 16) (Specify Model T2A3-B /FM).*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
