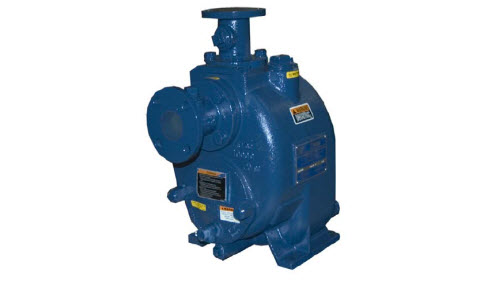

Gorman-Rupp T2A3-B /FM

Double tap to zoom

T Series® T2A3-B /FM
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Size: 2" x 2" (51 mm x 51 mm) NPT - Female.
Casing: Gray Iron 30. Maximum Operating Pressure 79 psi (545 kPa).*
Semi-Open Type, Two Vane Impeller: Ductile Iron 65-45-12. Handles 1 1/2" (38,1 mm) Diameter Spherical Solids.
Impeller Shaft: Alloy Steel 4150.
Shaft Sleeve: Alloy Steel 4130.
Replaceable Wear Plate: Carbon Steel 1026
Removable Cover Plate: Gray Iron 30; 20 lbs. (9 kg).
Seal Plate: Gray Iron 30.
Externally Replaceable Flap Valve: Neoprene w/Steel Reinforcing.
Bearing Housing: Gray Iron 30.
Radial Bearing: Open Single Row Ball.
Thrust Bearing: Open Double Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non-Detergent Oil.
Flanges: Gray Iron 30.
Gaskets: Buna-N, Vegetable Fiber, Cork and Rubber.
O-Rings: Buna-N.
Internal Wetted Hardware: Standard Plated Steel.
External Hardware: Standard Plated Steel.
Brass Pressure Relief Valve.
Bearing and Seal Cavity Oil Level Sight Gauges.
Optional Equipment: Automatic Air Release Valve. 120V/240V Casing Heater. High Pump Temperature Shutdown Kit. GR Hard Iron Seal Plate. Hardened Steel Wear Plate. Permalon Seal. Self-Cleaning Wear Plate.
Gray Iron 30 Suction and Discharge Spool Flanges:
2" ASA (Specify Model T2A3-B /F).
50 mm DIN 2527 (PN 16) (Specify Model T2A3-B /FM).
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.
Specifications
Suction | 2" (51 mm) |
Discharge | 2" (51 mm) |
Solids Handling | 1.5" (38 mm) |
Material | Cast Iron |
Impeller Material | Ductile Iron |
Seal Material | Tungsten Carbide |
Flange | DIN Spool |
Drive Type | Basic |
