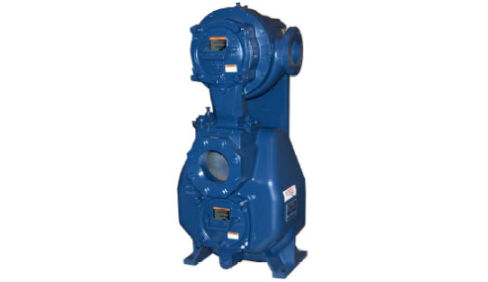

Ultra V Series and UltraMate VS4A60-B
Features
Size: 6” x 4” (152 mm x 102 mm) - Flanged.**
Casings: Gray Iron 30. Maximum Operating Pressure 229 psi (1579 kPa).*
Semi‐Open Type, Two Vane Impellers: Ductile Iron 65‐45‐12.
Handles 3” (76,2 mm) Diameter Spherical Solids.
Impeller Shafts: Alloy Steel 4150.
Self‐Cleaning Replaceable Wear Plates: Carbon Steel ASTM A36.
Shimless Adjustable Cover Plates: Gray Iron 30.
Suction Flange: Gray Iron 30.
Bearing Housings: Gray Iron 30.
Seal Plates: Gray Iron 30.
Shaft Sleeves: Alloy Steel 4130.
Radial and Thrust Bearings: Open Single Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Gaskets: Buna‐N, Compressed Synthetic Fibers, Vegetable Fiber, PTFE, Cork, and Rubber.
O‐Rings: Buna‐N.
Transition Chamber: Ductile Iron 65‐45‐12.
Hardware: Standard Plated Steel.
Brass Pressure Relief Valves.
Bearing and Seal Cavity Oil Level Sight Gauges.
Optional Equipment: Automatic Air Release Valve. High Pump
Temperature Shutdown Kit. Stainless Steel/G‐R Hard Iron
Impellers, Wear Plates and Seal Plates. 120/240 Volt Casing Heater.
** Optional Gray Iron 30 Flange Kits Available as Follows
(See Price Sheets):
4” Female NPT Discharge Flange Kit.
6” and 4” ASA Suction/Discharge Spool Flange Kits.
150 mm and 100 mm DIN 2527 (PN 16) Suction/Discharge Spool Flange Kits.
Specifications
| Suction | 6" (152 mm) |
| Discharge | 4" (102 mm) |
| Solids Handling | 3" (76 mm) |
| Material | Cast Iron |
| Impeller Material | Ductile Iron |
| Seal Material | Silicon Carbide |
| Flange | ASA |
| Drive Type | Basic |
