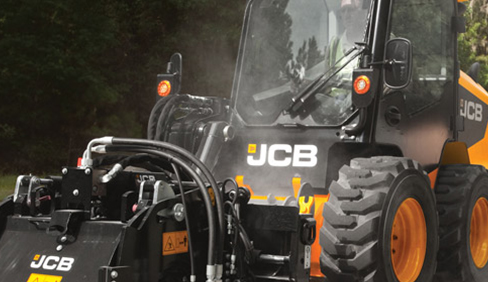

JCB 300

We’ve designed our range of skid steer loaders to be serviced easily, ensuring minimum downtime. Firstly, we mount our engines longitudinally for easy access to the drive belt and associated components. There are also 30% fewer grease points than average vertical lift twin arm skid steers.

We’ve installed front and rear chassis clean out plates, with a fluid drain point in the rear one, as well as durable O-ring face seals on all hydraulic fittings. There’s excellent service access through the rear service door and gas strut-assisted tilting radiator.

So it’s no wonder our large platform skid steer loaders are on average 24% more serviceable than competitors’ machines, based on SAE Service Audit Scores. And there’s more too.

Even more serviceability

• Easy-to-service hydraulically-driven variable speed fan.
• Cab can be easily tilted by one person for hose access.
• Daily check points are grouped and easily accessible.
• Chassis has an integrated fuel tank and drain point.

Engine

Net Engine Power
74hp (55kW)

Loader Specification

Bucket Breakout Force
7187lb (3260kg)
Loader Lift Force
5809lb (2634kg)
Rated Operating Capacity - 50%
3000lb (1360kg)
Tipping Load
6024lb (2732kg)

Machine Specification

Engine Model
EcoMAX T4i
Gross Horsepower
74hp (55kW)
Gross Torque
295lbf (400Nm)
Lift Path
Vertical Lift
Operating Weight
9054lb (4107kg)
Visibility
270°

Specifications

Auxiliary Hydraulic Flow
23gpm (87lpm)
High Flow
35.7gpm (135lpm)
Main Relief Pressure
3335psi (230bar)
Single Speed
10.9kph (6.8mph)
Two Speed
10.9kph (6.8mph) / 20kph (12.4mph)

Loader Performance

Operating Weight
9054lb (4107kg)
