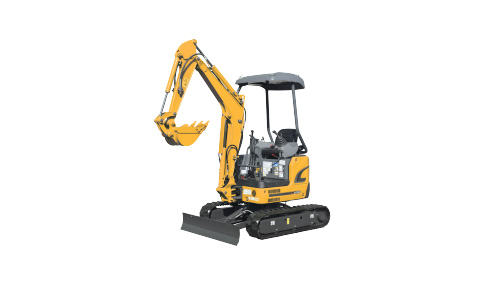

Mini Excavators SK17SR
Features
Compact Size
- Crawler adjustment 39.0"{990mm} 4'4"{1,320mm}
- Ultra-small rear swing radius with zero tail overhang (when crawlers are fully extended)
- Operating width with boom swung left:6'6"{1,980mm}
- Can be loaded onto a dump truck for transport without disassembly
- High quality digging along walls
Exellent Performance
- Faster cycle times
- Smooth truck loading
- Ideal for utility work
- Wider boom swing range
Easy Maintenance
- Engine compartment layout optimized for serviceability
- Prolonged refueling intervals
- Hydraulic oil change interval: 5,000 hours
- Hydraulic oil filter with a 1,000 hours service life
- Reliable design providing long-lasting performance and quality
Specifications
| Performance | |
|---|---|
| Bucket capacity cu.yd.{m3} | 1.55 {0.044} SAE Heaped |
| Travel speed mph {km/h} | 2.5 {4.0} / 1.2 {2.0} |
| Swing speed rpm{min-1} | 8.6 |
| Gradeability %(°) | 58 (30) |
| Drawbar pulling force lbs {kN} | 4,480 {19.9} |
| Bucket digging force lbs {kN} | 3,420 {15.2} |
| Arm crowding force lbs {kN} | 2,250 {10.0} |
| Weight | |
| Machine mass lbs {kg} | 3,640 {1,650} |
| Ground pressure psi {kPa} | 4.0 {27.5} |
| Engine | |
| Model | MITSUBISHI L3E-W431KBS |
| Type | Water-cooled, 4-cycle, 3-cylinder, direct injection, diesel |
| Power output hp{kW}/rpm{min-1} | 15.2 {11.3} / 2,200 (ISO 9249) |
| Max. torque lb-ft {N.m}/rpm{min-1} | 39.5 {53.5} /1,800 (ISO 9249) |
| Displacement cu.in (L) | 58.1 (0.952) |
| Fuel tank U.S.gal {L} | 5.8 {22} |
| Hydraulic System | |
| Pump | Two variable displacement pumps |
| Max. discharge flow U.S.gph {L/min-1} | 2X4.3 {2X16.3} |
| Max. discharge pressure psi {MPa} | 3,130 {21.6} |
| Hydraulic capacity U.S.gal {L} | 2.4 {9.0} (tank level), 4.0 {15.0} (system) |
| Dozer Blade | Blade ft-in{mm} 39.0"{990} /4'4"{1,320} width X 9.8"{250} height, 11.0"{280} up, 10.6"{270} down |
| Side Digging | |
| Type | Boom swing type, offset angle: 65° to the left, 55° to the right |
