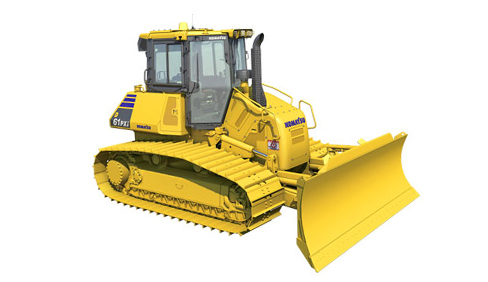

Dozer Series D61PXi-23
Features
Factory Installed Machine Control Components Machine control components are factory installed and designed as an integral part of the base machine for improved durability.
Komatsu Quality Machine control components and system validated to Komatsu’s rigorous quality & durability standards.
Industry Standard Compatibility Machine control system makes use of common industry design data file norms and supports typical base station communication.
Simple Operator Interface Simple touch screen control box with multi-color customizable display.
3D GNSS Machine Control Standard All on-machine components standard including control box, GNSS receiver/ radio, GNSS antenna, and enhanced inertial measuring unit sensor.
Finish Grade Performance Enhanced sensor package and intelligent logic provides for finish grade accuracy in an integrated system without traditional blade mounted sensors.
Stroke Sensing Hydraulic Cylinders Robust stroke sensing hydraulic cylinders employee proven Komatsu sensor technologies for accurate finish grade performance.
Enhanced Inertial Measuring Unit (IMU+) Chassis mounted enhanced inertial measuring unit (IMU+) and intelligent logic provides for finish grade accuracy without blade mounted sensors.
Cab Top GNSS Antenna No blade mounted GPS antennas, cables to worry about damaging with cab top GNSS antenna.
Automatic Dozing From Start To Finish Load control intelligence controls blade elevation to improve productivity and minimize track slip by adjusting blade load. 10’ from grade or 0.1” from grade – you can run in auto mode.
Intelligent Dozing Mode Settings Operators are able to select between 4 distinct machine control operating modes to optimize performance to the application whether cutting, spreading, or other.
Operator Selectable Load Settings Machine control load settings can be adjusted between presets to tailor response to material conditions.
Specifications
| Engine | ||
| Model | Komatsu SAA6D107E-2* | |
| Type | 4-cycle, water-cooled, direct injection | |
| Aspiration | Komatsu variable geometry Turbocharged, air-to-air aftercooled | |
| Number of cylinders | 6 | |
| Bore x stroke | 4.21" x 4.88" | 107 mm x 124 mm |
| Piston displacement | 408 in³ | 6.69 ltr |
| Governor | All-speed and mid-range, electronic | |
| Horsepower: | ||
| SAE J1995 - Gross | 170 HP | 127 kW |
| (ISO 14396 | 169 HP | 126 kW |
| ISO 9249 / SAE J1349 - Net | 168 HP | 125 kW |
| Rated rpm | 2200 rpm | |
| Fan drive type | Hydraulic | |
| Lubrication system: | ||
| Method | Gear pump, force lubricationn | |
| Filter | Full-flow | |
| Hydrostatic Transmission | ||
| Dual-path, hydrostatic transmission provides infinite speed changes up to 9.0 km/h 5.6 mph. The variable capacity travel motors allow the operator to select the optimum speed to match specific jobs. Travel control lock lever and neutral switch. | ||
| Travel speed (quick shift mode)* | Forward | Reverse |
| 1st | 0-3.4 km/h 0-2.1 mph | 0-4.1 km/h 0-2.5 mph |
| 2nd | 0-5.6 km/h 0-3.5 mph | 0-6.5 km/h 0-4.0 mph |
| 3rd | 0-9.0 km/h 0-5.6 mph | 0-9.0 km/h 0-5.6 mph |
| Travel speed (variable mode) | 0-9.0 km/h 0-5.6 mph | 0-9.0 km/h 0-5.6 mph |
| *Quick shift speeds are adjustable in the monitor. | ||
| Final Drive | ||
| In-shoe mounted axial piston type travel motors with integrated two-stage planetary gear reduction. Compact in-shoe mount reduces risk of damaged by debris. Bolt-on sprocket teeth for easy displacement. | ||
| Steering System | ||
| Palm Command Control System (PCCS) joystick control for all directional movements. Pushing the joystick forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the joystick to the left or right to make a turn. Tilting the joystick fully to the left or right activates counter-rotation. | ||
| Hydrostatic Transmission (HST) provides smooth powerful turns. Fully electronic control enables smooth control that can be adjusted in the monitor. The PCCS utilizes shift buttons to increase and decrease speed. | ||
| Minimum turning radius (as measured by track marks on the ground at pivot turn.) | 91" | 2.3 m |
| Undercarriage | ||
| Suspension | Oscillating-type with equalizer bar and pivot shafts | |
| Track roller frame | Monocoque, large section, durable construction | |
| Rollers and idlers | Lubricated track rollers | |
| Lubricated tracks | Parallel Link Undercarriage System (PLUS) with lubricated rotating bushings for extended system wear life and lower maintenance costs. | Track tension is easily adjusted with grease gun. |
| Number of track rollers (each side) | 8 | |
| Type of shoes (standard) | Single grouser | |
| Number of shoes (each side) | 46 | |
| Grouser height | 2.3" | 57.5 mm |
| Shoe width (standard) | 34" | 860 mm |
| Ground contact area | 8,451 in² | 54520 cm² |
| Ground pressure | ||
| (with dozer, ROPS canopy): | 4.87 psi | 33.6 kPa |
| 0.34 kgf/cm² | ||
| Track gauge | 7'0" | 2130 mm |
| Length of track on ground | 10'5" | 3161 mm |
| Service Refill Capacities | ||
| Coolant | 11.9 U.S. gal | 45 ltr |
| Fuel tank | 98.3 U.S. gal | 372 ltr |
| Engine oil | 7.2 U.S. gal | 27 ltr |
| Hydraulic tank | 26.7 U.S. gal | 101 ltr |
| Final drive (each side) | 2.2 U.S. gal | 8.1 ltr |
| Operating Weight APROXIMATE | ||
| Tractor weight: | Including ROPS cab, U frame for power angle tilt dozer, rated capacity of lubricant, coolant, full fuel tank, operator, and standard equipment. | |
| D61PX-23 | 38,581 lb | 17500 kg |
| Operating weight: | Including Power Angle Tilt dozer, ROPS cab, operator, standard equipment, rated capacity of lubricant, hydraulic control unit, coolant, and full fuel tank. | |
| D61PX-23 | 41,138 lb | 18660 kg |
| Hydraulic System | ||
| Closed-center Load Sensing System (CLSS) designed for precise and responsive control, and for efficient simultaneous operation. | ||
| Hydraulic control unit: | ||
| All spool control valves externally mounted remote to the hydraulic tank. Piston-type hydraulic pump with capacity (discharge flow) of 171 ltr/min / 45 U.S. gal/min at rated engine rpm. | ||
| Relief valve setting | 3,974 psi | 280 kg/cm² |
| 27.4MPa | ||
| Hydraulic cylinders | 3,974 | |
| Hydraulic cylinders: | Number of cylinders | Bore |
| Blade lift | 2 | 4" |
| 100 mm | ||
| Blade tilt | 1 | 5" |
| 120 mm | ||
| Blade angle | 2 | 4" |
| 100 mm | ||
| Hydraulic oil capacity (refilling): | ||
| Power angle tilt dozer | 26.7 U.S. gal | 101 ltr |
| Control valves: | ||
| 3-spool control valve for Power Angle Tilt dozer | ||
| Positions: | ||
| Blade lift | Raise, hold, lower, and float | |
| Blade tilt | Right, hold, and left | |
| Blade angle | Right, hold, and left | |
| Additional control valve required for ripper | ||
| Positions: | ||
| Ripper lift | Raise, hold, and lower |
