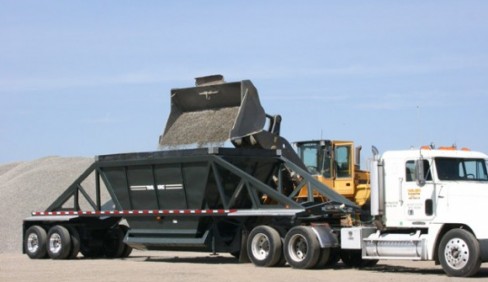

Trail King UltraLite Bottom Dump
Trailers UltraLite Bottom Dump
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Trail King has designed the Ultra-Lite Bottom Dump, only 9,900 lbs. and large capacity. Extreme weight reduction is achieved through the use of 100,000/175,000 psi Domex/Docal high strength steel components and re-engineered structure. The Ultra-Lite Bottom Dump... Ultra-Lite. Ultra-Efficient.
Full Oscillating Fifth Wheel Plate features a spherical, chrome-bushed design that reduces wear and provides longer service life than a shaft and bushing design.
Lightweight Crossbraces tie the frame together in a way that minimizes the flexing and twisting that can cause cracking in critical stress areas.
Wooden Extensions replaceable, reinforced wooden extensions provide protection to hopper edges and added capacity. (optional)
Specifications
STANDARD EQUIPMENT*
22,500# Axles
3-Leaf Suspension
Duralite Piloted Hubs
Centrifuse Drums
22.5 x 8.25 10-Hole Hub Piloted Disc Wheels
11R22.5 Radial 14 Ply Tires
Variable Valve Control w/ Pendant
**2S/1M Anti-Lock Brake System
48" 5th-Wheel Height
Gate Mounted Pin Style Landing Gear
Front & Rear Striker Plates
Aluminum Front & Rear Fenders
Lightweight Pushblock
Trail King 2-part Polyurethane Paint
* All specifications are subject to change without notice.
** To meet 1997 federal requirements, Trail King offers two variations of the anti-lock braking system. The minimum 2S1M system is available, but Trail King recommends the 4S2M system.
