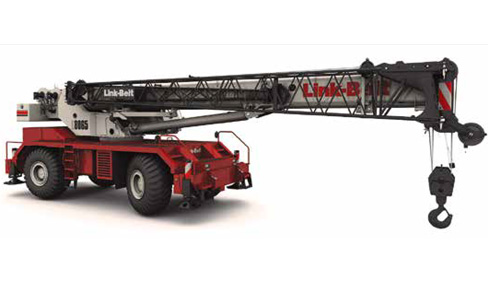

Link-Belt RTC 8065 Series II

• Fully rigged transport weight of less than 90,000 lbs (40 832.3 kg)
• Boom wear pads have Teflon pucks that lubricate the boom sections (no grease)
• Four fly options feature four offset positions of 2°, 15°, 30°, and 45°
• Next generation operator's cab with improved visibility and ergonomics
• Integral air conditioning - optional
• 4-Link suspension on the rear axle with an optional Hydro-Gas Ride™ system
• 4-mode steering controlled from the steering wheel
• Full-length flat deck with integrated steps and handholds
• Large swing out engine hood doors for ease of service
• Access ladders and folding guardrails

65 UST (60 MT) ROUGH TERRAIN CRANE

• 38 - 115 ft (11.6 - 35.0 m) four section boom
• Optional 35 - 58ft (10.7 - 17.7 m) two-piece offsettable fly
• Optional two 16 ft (4.88 m) extensions plus 58 ft (17.7 m) two-piece bi-fold lattice fly
• 211 ft 7 in (64.5 m) maximum tip height
• Height: 12 ft 2 in (3.7 m);
  Width: 10 ft 7 in (3.2 m)
  Length: 45 ft 6 in (13.9 m)
• 23.7 mph (38.1 km/hr) travel speed
• 14 ft 7 in (4.45 m) wheel base
• 26.5x25 tires
• Spicer 6 speed power shift transmission
• 24 ft (7.32 m) outrigger spread
  24 ft (7.32 m) outrigger base
• 16,883 lbs (7 658kg) maximum winch line pull
• 459 fpm (139.9 m/min) maximum winch line speed
