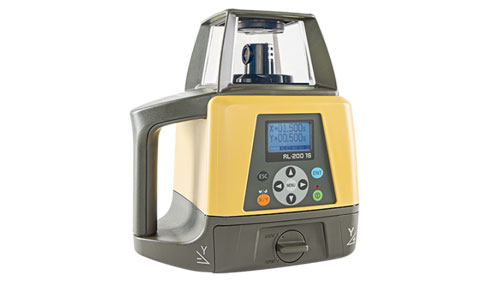

Topcon RL-200 » General Equipment & Supplies, Inc. ND, SD, MN, IA

Double tap to zoom



Slope lasers are perhaps the most advanced of all rotating construction lasers. They are used over long working distances, and bring the same accuracy everywhere with extremely exacting slopes.

The RL-200 gives the machine operator a tool to set the desired cross slope and elevation values from the driver seat for improved productivity.

  • Wide grade range (up to 25 % slope)
  • Up to 100 hours battery life
  • Increased working diameter - 1100 m
  • Clear graphical display
  • Environment rating IPX6


Accuracy Horizontal +-7 arc seconds
Repeatability 7 arc seconds
Working Area 3,600 ft. (1100m)
Rotation Speed 300/600/900 rpm
Dust/Water Protection IP66
Operation Time Alkaline: 100 Hours
  Ni-MH: 90 hours
Grade Range RL-200 2S +-10 / -5 to +25
(single/dual) RL-200 1S: -5 to +25 n/a
Size (H x W x L) 253 x 218 x 174 mm
