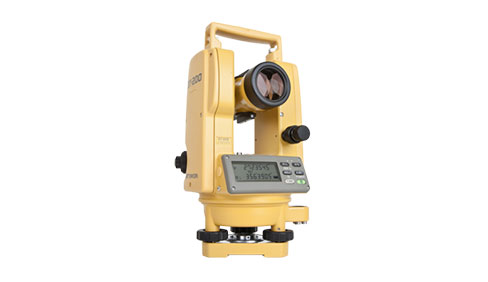

Topcon DT-200 » General Equipment & Supplies, Inc.

Double tap to zoom



The DT-200 series integrates the same high-quality advanced absolute circle reading technology found in Topcon high-performance total station products for high accuracy field calculations.

• IP66 water and dust protection
• Compact and light weight
• Long-life 140 hour battery
• Absolute H & V angle encoder
• High accuracy (2", 5”, 7” and 9” models) measurements


Angle Measurement
Accuracy DT-205/DT-205L: 5"
  DT-207/DT-207L: 7"
  DT-209/DT-209L: 9"
Magnification DT-205/DT-205L: 30x
  DT-207/DT-207L: 30x
  DT-209/DT-209L: 26x
Laser Pointer Focusing
Display DT-205/DT-205L: 2 sides
  DT-207/DT-207L: 2 sides
  DT-209/DT-209L: 1 side
Tilt Sensor DT-205/DT-205L: Vertical
  DT-207/DT-207L: N/A
  DT-209/DT-209L: N/A
Operating Temp. -68'F to 122'F (-20'C to 50'C)
