Trimble Spectra Precision Laser LL400

Double tap to zoom

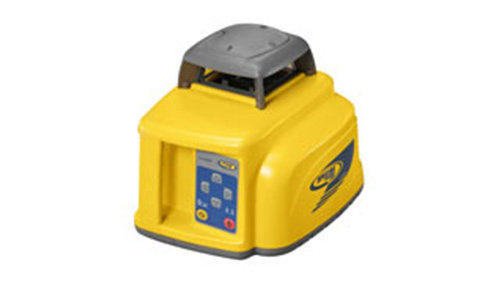

Durable, highly accurate Spectra Precision Laser LL400 Laser Level
withstands the toughest job site

The fully automatic, self-leveling Spectra Precision® Laser LL400 Laser Level sets a new standard in rugged reliability, handling a wide variety of general and concrete construction applications. Even in tough jobsite conditions, the LL400 consistently delivers reliable, accurate performance to increase your overall productivity and cost-savings.

The LL400 Laser Level features easy, one-button operation for basic leveling and provides reliable, highly accurate, long-range measurements, even for machine control applications.

The LL400 is designed to be durable and reliable, day in and day out, and can be operated in the rain for superior drop and weather protection. The rugged LL400 can withstand drops of up to 1 meter (3 feet) onto concrete and tripod tip-overs up to 1.5 meters (5 feet). This strength, combined with full weatherproofing and dust-proofing, results in reduced downtime and lower repair costs.

The LL400's self-leveling capability and optional RC601 remote control provide outstanding accuracy and allow one-person setup of slopes on grade.

Choice of Receiver

Choosing the right receiver ensures maximum performance from the LL400. You can customize the LL400 to your specific application needs with a choice of the HL700 or CR600 receivers.

Features & Benefits:

  • Fast setup, minimal training time and automatic self-leveling minimize operating costs and boost productivity
  • Highly rugged design and unique patent-pending lighthouse seal protects the transmitter head and glass, offering superior drop and weather protection for reduced downtime
  • One-person operation reduces labor costs.
  • Highly accurate at 1.5 millimeters at 30 meters (1/16 inches at 100 feet) for precise measurements on the job
  • Temperature-calibrated, high accuracy for consistent performance across larger jobsites
  • IP66 dust and waterproof for continual performance in harsh conditions
  • Withstands a direct drop of 1 meter (3 feet) or a 1.5 meter (5 feet) tip-over onto concrete
  • Ability to be used up to 800 meters (2600 feet) diameter with a detector makes the unit ideal for small to large projects
  • Single-axis slope mode offers fast setup and grade match to a reference mark for permanent and accurate ceiling slope reference
  • Energy-efficient design offers choice of rechargeable or alkaline batteries for lower operating costs
  • Long-range remote control gives you quick access to all the laser functions without returning to the transmitter
  • Customizable to your needs with choice of two receivers


  • Excavations
  • Slopes on grade
  • Leveling forms and footers
  • Screeding concrete
  • Driveways and ramps
  • Machine control


Laser Source 650 nm visible, Class 2
Laser Accuracy ±1.5 mm at 30 m (±1/16 in at 100 ft)
Operating Receiver Range
(Diameter) w/HL700 receiver

800 m (2,600 ft)
Compensation Method Electronic self-leveling
Temperature Calibrated Yes
Self-Leveling Range ±5 degrees
Machine Control Compatible Yes
Ruggedized lighthouse Yes
Drop Height on Concrete performance 1 m (3 ft)
Remote Control Range
(Optional RC601)
200 m (650 ft) –X side,
up to 50 m (160 ft) all other sides
Single Axis Slope Mode Yes (both axes)
Out of Level (HI) Warning Yes
Power Source 4 “D” Alkaline Standard, NiMH Optional
Battery Life 90 hours Alkaline, 55 hours NiMH
Battery Status LED Flashing red LED
Battery recharging time Less than 10 hours
Rotation Speed 600 RPM
Tripod Mount (Horizontal and Vertical) 5/8” x 11
Out-of-Level warning Rotor stops, laser shuts
off, red HI-alert LED flashes
Operating Temperature -20 to +50°C (-4 to +122°F)
Storage Temperature -20 to +70°C (-4 to 158°F)
Dust and Waterproof Yes, IP66
Size 21L x 18W x 20H cm (8.3L x 7.1W x 7.9T in)
Weight 3.1 kg (6.8 lbs)
Warranty 5 years
