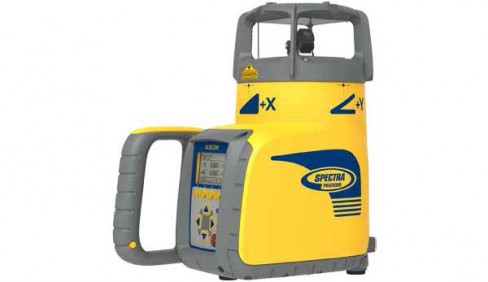

Lasers Spectra Precision Laser UL633N

Double tap to zoom



Features

Features

  • Automatic electronic self-leveling provides fast, easy horizontal level, grade, and vertical plumb setup
  • Large compensated grade range from -25% to +25%
  • Quick setups with the combined radio/infrared remote control for horizontal, vertical and grade applications
  • Electronic Leveling Vibration Filter dampens vibrations typically experienced on tall tripods, in high winds, or on high vibration jobsites.
  • No rework due to automatic temperature and grade compensation
  • Dual Automatic Axis Alignment doing precise automatic axes alignments to two desired alignment points without positioning the receivers 90° perpendicular (+/-40° alignment range on Y- and X-axis)
  • Horizontal Angle Measurement Capability offers the opportunity to measure the angle between two points through two axis alignments on the Y- or X- axis
  • Automatic Spot Align. The SF601 guides the beam quick and accurate to the target point in the horizontal axis, while the Z-axis grade value will be maintained
  • Spot Search uses the Spot Finder SF601 to find the center of the plumb beam manually
  • Single and Dual Grade Match (Y- and X-axis separate or at the same time) and Spot Match (Z-axis) measures and displays the existing grade over unknown ground and eliminates time consuming and error prone calculations, time spent searching for grade plans, and over excavating
  • Single and Dual PlaneLok (Y- and X-axis separate or at the same time) and Spot Lok (Z-axis) automatically locks on to an existing elevation or vertical alignment point which eliminates all drift or possibility of error due to improper calibration or weather
  • Very rugged, survives a 1 m (3 ft) drop on concrete and reduces service and repair costs
  • Mask mode eliminates interference with other crews on the jobsite
  • Different rotation speeds (continuously adjustable) plus Scanning Mode offer additional value and make sure also requirements of Interior jobsite will be fulfilled

Applications

  • General construction leveling such as forms, footers and pads
  • Precision placement of concrete for critical specification surfaces over long distance and with laser controlled screeds (Automatic PlaneLok)
  • Drift free general construction vertical alignment and plumb for anchor bolt installation, plus form, tilt up and curtain wall plumbing (Automatic PlaneLok)
  • Dual slope grading and steep slope excavating
  • Slope work for sports fields, driveways, ramps and parking garages
  • Interior construction - layout of walls and installation of drop ceilings

Specifications

UL633N Specifications

  • Leveling accuracy1,3: ± 0.5 mm/10 m, 1/16“ @ 100 ft, 10 arc seconds
  • Grade accuracy1,3: ± 1.0 mm/10 m, 1/8“ @ 100 ft, 20 arc seconds
  • Grade temperature drift sensitivity: ± 0,3 mm / 10 m / 1°C; 1/16” @ 310 ft. @ 1°F
  • Operating diameter1,2: appr. 800 m (2600 feet) with detector
  • Grade range (Y;X): ± 25% both axes (not simultaneously)
  • Grade range (Z): ± 25%
  • Rotation: 0 - 750 rpm
  • Scan mode: 5 preset sizes + variable adjustment
  • Laser type: red diode laser 650 nm
  • Laser class : Class 3
  • Self-leveling range: appr. ± 14°
  • Leveling indicators: LCD indications and LED flashes
  • Radio range (HL760)1,2,4: up to 150 m (500 ft)
  • Power source: NiMH battery pack/alkalines
  • Battery life1 : 35 hours NiMH
  • Operating temp.: -20°C to 50°C (-4°F to 122°F)
  • Storage temp.: -20°C to 70°C (-4°F to 158°F):
  • Tripod attachments: 5/8 x 11 horizontally and vertically
  • Dust and waterproof: Yes - IP67
  • Weight: 3.1 kg (6.8 lbs)
  • Low voltage indication: LCD battery indicator
  • Low voltage disconnection: unit shuts off
  • Warranty: 5 Years
