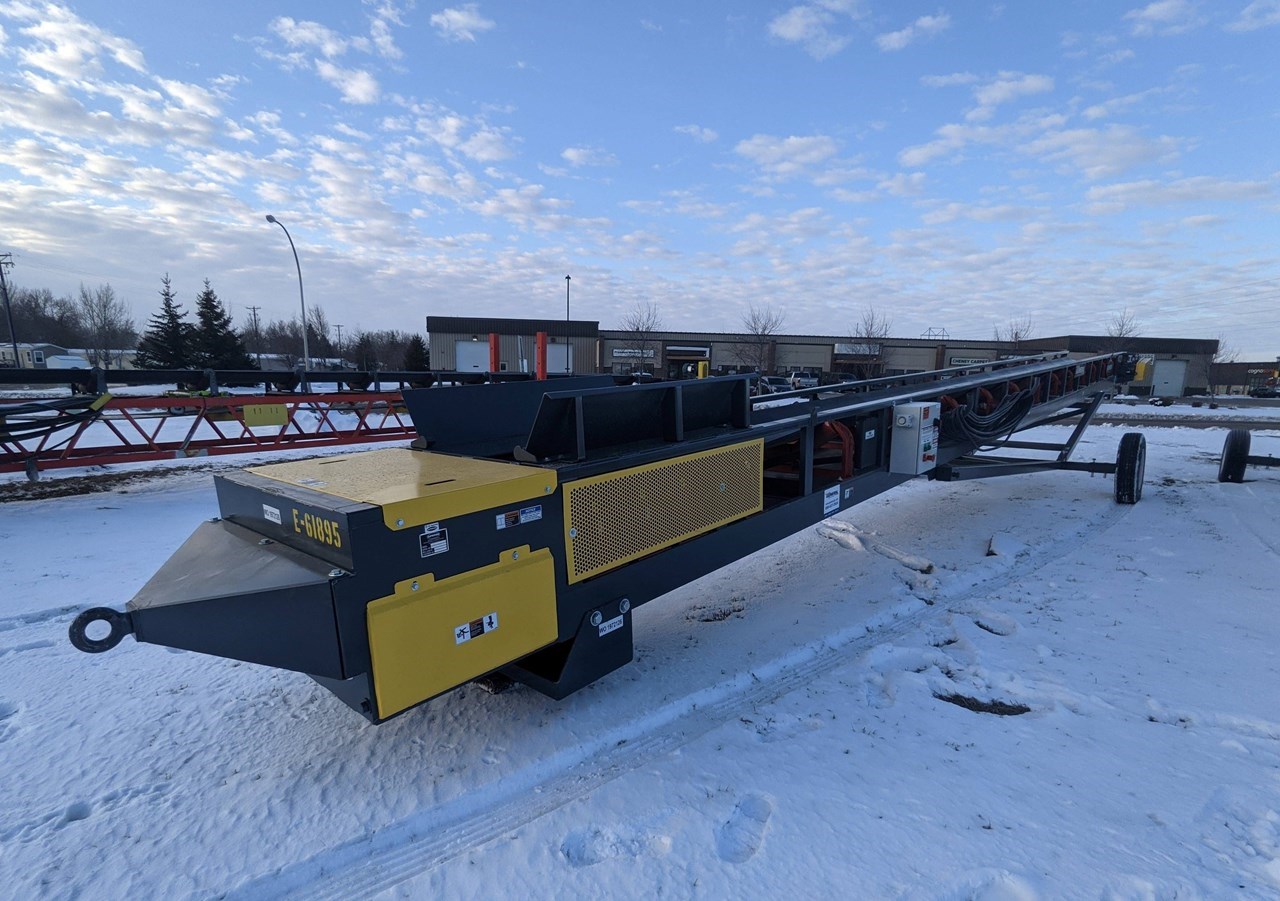

2022 Superior Conveyor - Stacking 36X60STKP
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR CONVEYOR
Inventory ID
E00061895
Serial
1972126
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00061895
- Status: On Rent
- Make: Superior
- Model: 36X60STKP
- Year: 2022
- Serial#: 1972126
Notes
- SUPERIOR 36›¼À X 60- STACKABLE PLUS CONVEYOR EQUIPMENT AS PER BELOW:
CONVEYOR FRAME:
- MAIN FRAME 8" CHANNEL
- UPRIGHTS 4" CHANNEL
- TOP CHORD 4" X 2" TUBING
DRIVE SPECIFICATIONS:
- DRIVE CLASS I HEAD END
- GEAR REDUCER DODGE SHAFT MOUNT
- BACKSTOP INSTALLED IN REDUCER
- MOTOR 20 HP 1800 RPM TEFC
- V-BELT DRIVE WITH DRIVE GUARD
- CAPACITY 850 STPH OF 100 PCF MATERIAL 25 DEGREE SURCHARGE (90% FINES 10%
SPHERICAL LUMPS 4›¼À MINUS) 8- OF LIFT
- BELTSPEED 400 FPM - SUPERIOR PULLEYS:
- DRIVE PULLEY 14›¼À DIAMETER 3/8›¼À HERRINGBONE LAGGED DRUM
- TAIL PULLEY 12›¼À DIAMETER CEMA CHEVRON›¼® WING PULLEY
- SHAFTS TURNED AND POLISHED
- BEARINGS DODGE
- TAKE UPS SCREW TYPE
PORTABILITY:
- CONVEYOR SPLICE ONE PIECE FRAME
- SUPPORT NOT INCLUDED
- TAIL SUPPORT NOT INCLUDED
- STACKABLE PLUS INCLUDED
- UNDERCARRIAGE MANUAL RAISE WITH PIN LOCK HEIGHT ADJUSTMENT 102›¼À AXLE 11-22.5 - TIRES AND SWIVELING WHEELS HEAVY DUTY DOT RIMS WITH WELD IN 8-HOLE CENTER
(VOIDS DOT RATING)
- WHEELS ›¼À HEAVY DUTY DOT RIMS WITH WELD IN 8-HOLE CENTER (VOIDS DOT RATING)
- ANCHOR PIVOT NOT INCLUDED
- BEND OPTION NOT INCLUDED
- FIFTH WHEEL FOR ROAD TRAVEL BOLT ON DESIGN
- TOW EYE PINTLE TYPE HITCH
- AXLE JACKS NOT INCLUDED
CONVEYOR COMPONENTS:
- BELTING 3 PLY 3/16 X 1/16 330 PIW
- BELT SPLICE FACTORY VULCANIZED BELT SPLICE
- SCRAPER SUPERIOR EXTERRA›¼® PRIMARY BELT SCRAPER
-SUPERIOR IDLERS CEMA C 5›¼À DIA. ROLLS SEALED FOR LIFE BALL BEARINGS
- LOAD AREA 20›¼° TROUGH 12-16" SPACING
- TROUGH 35›¼° ON 4- SPACING
- RETURNS 4›¼À STEEL ROLLS ON 10- SPACING
- SKIRTING EXTENSION 5- LONG 10" HIGH HINGED WITH 1" ROUND BAR FOR MATERIAL
SHELF
- GATHERING TROUGH 5- LONG WITH ADJUSTABLE RUBBER FLASHING
ADDITIONAL SPECIFICATIONS:
- GUARDING FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED.
- VOLTAGE 480 V / 3 PH / 60 HZ
- ELECTRICAL SWITCHGEAR AND 200- OF MAIN POWER CORD
- PAINT 1 COAT PRIMER 1 COAT FINISH ENAMEL (*AVAILABLE COLORS BELOW)
- SIGN PLATES GENERAL EQUIPMENT SIGN PLATES INSTALLED
- IDLER PAINT POWDER COATED SUPERIOR ORANGE
- OWNER›¼À™S MANUAL (1) COPY IN ENGLISH INCLUDED FOR OPERATION AND MAINTENANCE
