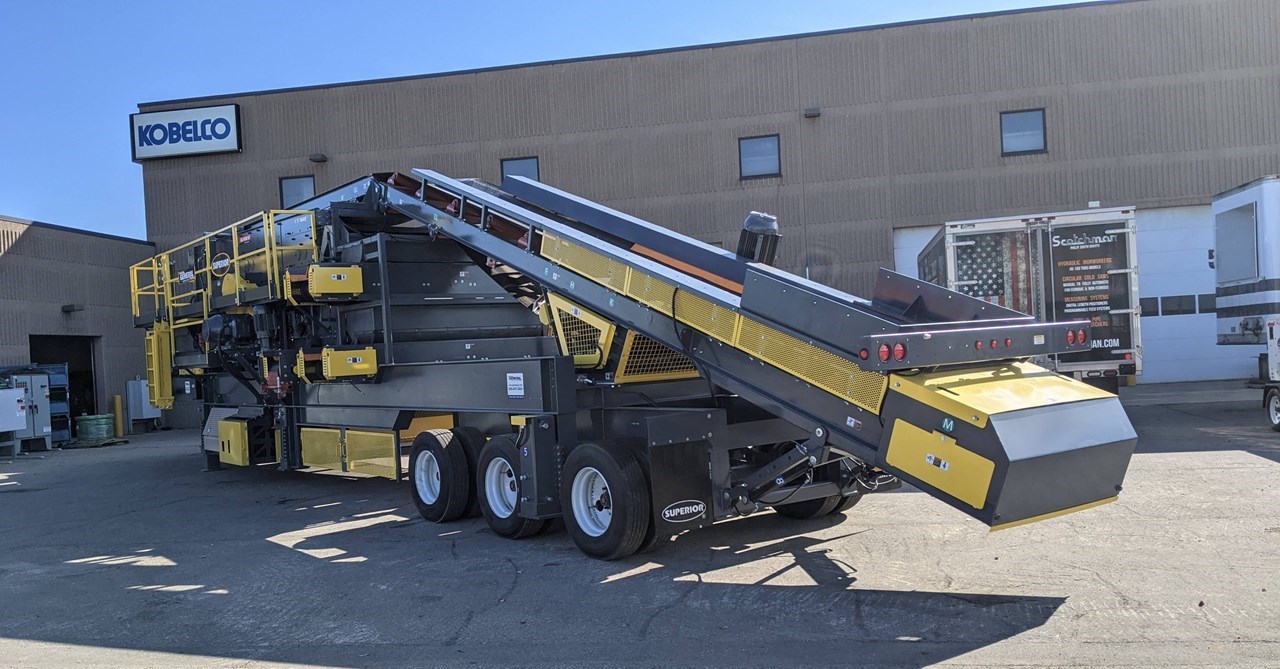

2021 Superior Screening Plant 7203-38OF
Fields with asterisks * are required.
Print This Page
Description
SCREEN PLANT W/ OVERHEAD FEED CONVEYOR
Inventory ID
E00060365
Serial
1847460
Machine Location
Details
- Inventory ID: E00060365
- Status: On Yard
- Make: Superior
- Model: 7203-38OF
- Year: 2021
- Serial#: 1847460
Notes
- SUPERIOR 7203-38OF OVERHEAD FEED SCREENING PLANT EQUIPPED AS DESCRIBED BELOW:
- - WIDE FLANGE STRUCTURAL STEEL MAINFRAME CHASSIS
- TRI-AXLE SUSPENSION WITH (12) 11R 22.5 RADIAL TIRES
- AIRBRAKES DIRECTIONAL SIGNALS MUDFLAPS
- FIFTHWHEEL
- (4) STRUCTURAL CRIBBING LEGS
- (6) 6" X 18" HYDRAULIC RUN-ON LEVELING LEGS WITH 9 HP HONDA
- 1/4 PANEL BLENDING IN DISCHARGE CHUTE SYSTEM
TOP TO TOP OR MID
MID TO MID OR BOTTOM
BOTTOM TO BOTTOM
- CUSTOM RAISED WALKWAYSAROUND SCREEN WITH CONVENTIONAL HEIGHT WALKWAY AT
FEED END FOR INSTALLATION OF END TENSIONED MEDIA.
- LOWER PLATFORM EACH SIDE FOR SAFE MAINTENANCE ACCESS OF VIBRATORY MECHANISM
- SELF CLOSING HINGED GATES X 2
- 26" X 20" X 60" ALUMINIM TOOL BOX
- REMOTE GREASE STATION
- PLANT PAINTED GRAPHITE GRAY (RAL7024) WITH YELLOW GUARDING AND RAILINGS - - 48" OVERHEAD FEED CONVEYOR WITH WRAP DRIVE SEW 25HP RIGHT ANGLE DRIVE
BACKSTOP.
- 14" RUBBER LAGGED HEAD PULLEY WITH TWO 12" CHEVRON SNUB PULLEYS (WRAP)
- VULCANIZED BELT
- CEMA C 5" TROUGHING ROLLERS
- CEMA C 5" RUBBER DISC RETURNS
- 3 PLY 3/16 X 1/16 330 PIW BELTING
- HYDRAULIC RAISE OF TAIL END OF FEED CONVEYOR - ADJUSTABLE FROM 6-2" TO
8-6.
- SUPERIOR SEAL SYSTEM IN LOAD ZONE WITH IMPACT ROLLERS
- SUPERIOR EXTERRA WIPER - - 60" UNDER SCREEN DISCHARGE CONVEYOR WITH 15HP SEW RIGHT ANGLE DRIVE
- VULCANIZED BELT
- 12" RUBBER LAGGED HEAD PULLEY 12" CHEVRON TAIL PULLEY
-CEMA C 5" TROUGHING ROLLERS
- CEMA C 5" RUBBER DISC RETURNS
- 3 PLY 3/16 X 1/16 330 PIW BELTING
- SUPERIOR EXTERRA WIPER - - (2) 30" X 13-6" TOP AND MIDDLE DECK CROSS CONVEYORS WITH 7.5 HP SEW RIGHT
ANGLE DRIVES
- VULCANIZED BELTS
- 10" RUBBER LAGGED HEAD PULLEY 10" CHEVRON TAIL PULLEY
- CEMA C 5" TROUGHING ROLLERS
- CEMA C 5" RUBBER DISC RETURNS
- 3 PLY 3/16 X 1/16 330 PIW BELTING
- SUPERIOR EXTERRA WIPERS - - (1) 24" X 13-6" BOTTOM DECK CROSS CONVEYOR WITH7.5 HP SEW RIGHT
ANGLE DRIVE
- VULCANIZED BELT
- 10" RUBBER LAGGED HEAD PULLEY 10" CHEVRON TAIL PULLEY
- CEMA C 5" TROUGHING ROLLERS
- CEMA C 5" RUBBER DISC RETURNS
- 3 PLY 3/16 X 1/16 330 PIW BELTING
- SUPERIOR EXTERRA WIPER - - GES STYLE SLIDE IN REJECT CONVEYOR ACCEPTANCE CAPABILITY
- SUPERIOR GUARDIAN 7203-38 3 DECK SCREEN AT 2.5 DEGREE INCLINE SIDE TENSIONED
PANELS ON TOP AND MIDDLE DECK WITH END TENSIONED PANELS FOR BOTTOM DECK.
- 50 HP 1200 RPM ELECTRIC NEMA PREMIUM "C" MOTOR
- 3 COIL SPRINGS EACH CORNER
- 24" PEFORATED FEED BOX WITH 1" X 3/8" SLOTTEN OPENINGS WITH 3/8" AR LINER TO
DIRECT FINES TO SECOND DECK
- 4FT PANEL LENGTH
- ET BOTTOM DECK - AES ELECTRICAL SWITHCGEAR FOR 7203-38OF SCREENING PLANT
- 400 AMP MAIN WITH LOCKABLE OPERATOR
- 50 HP FVNR FOR SCREEN
- 25 HP FVNR FOR OVERHEAD FEED
- 15 HP FVNR FOR UNDERSCREEN
- (3) 7.5 HP FVNR FOR CROSS CONVEYORS
- (2) 20 HP FVNR SPARES WITH 60 AMP HUBBELL RECEPTACLES
- 100 AMP FEED BREAKER WITH 100 AMP HUBBELL RECEPTACLE
- 3 HP SIRC SPARE WITH 20 AMP HUBBELL RECEPTACLE
- 5 KVAR TRANSFORMER WITH 110V OUTLET
- 150FT REMOTE PENDANT E-STOP ON PANEL METERS: VOLT/HZ/HOUR(SCREEN)
- 100FT POWERCORD
- SG PANEL TO SET OFF OF PLANT 30- - GUARDING - WE DO NOT WARRANT THAT MANUFACTURERS›¼À™ GUARDING WILL MEET ALL LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE GUARDING CHECKED BY A LOCAL INSPECTOR PRIOR TO STARTUP OF EQUIPMENT OPERATIONS CORRECTIVE ACTIONS AND ASSOCIATED EXPENSE ARE THE RESPONSIBILITY OF THE END USER.
